ABB IRB 1200-7/0.7

ABB ABB IRB 1000 Robot Series

Request a Quote 1/4

Contact us:

Details

["

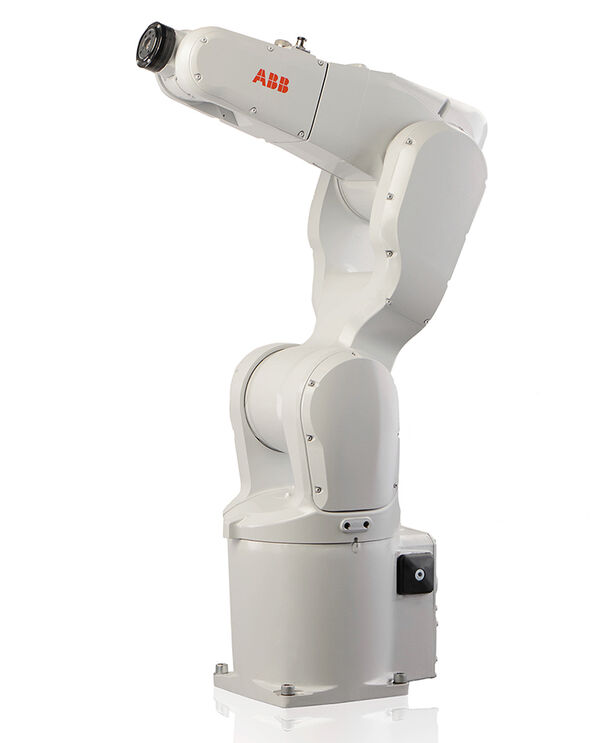

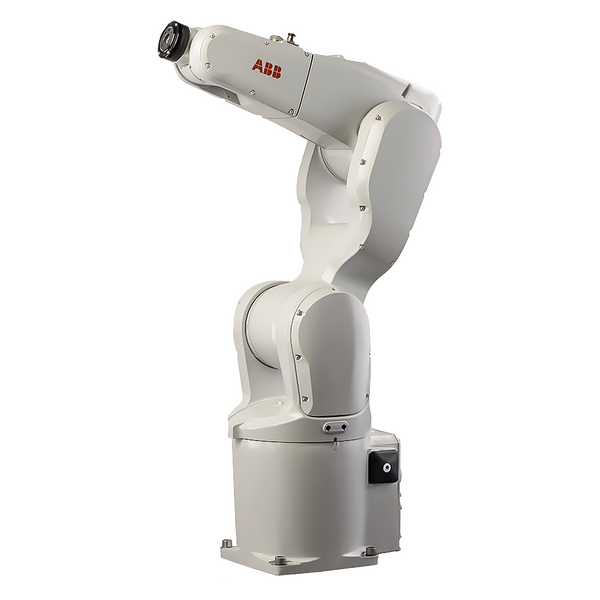

The ABB IRB 1200-7\/0.7 is a compact","high-speed","flexible robot that is ideal for machine tending and material handling applications. The IRB 1200 is proven to be 15% smaller and 10% faster than other robot in its class. The compact design allows for faster speeds while keeping precision.
<\/p>\r\n

The ABB IRB 1200-7\/0.7 comes with a 703 mm reach and 7 kg payload. It is durable and can be mounted at any angle. The IRB 1200-7\/0.7 comes with a standard IP40 protection rating","but IP67 protection is available as an option.<\/p>\r\n

Advance your material handling and machine tending applications with this advanced ABB IRB 1200-7\/0.7 IRC5 robot.<\/p>"]

Specs

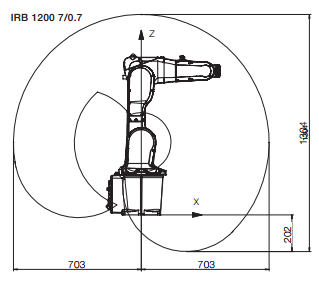

Reach
703 mm
Axes
6
Repeatability
0.06 mm
Mass
52 kg
Structure
Articulated
Mounting
["Floor","Inverted","Angle"]

Motion Speed

J1
288 °/s (5.03 rad/s)
J2
240 °/s (4.19 rad/s)
J3
300 °/s (5.24 rad/s)
J4
400 °/s (6.98 rad/s)
J5
405 °/s (7.07 rad/s)
J6
600 °/s (10.47 rad/s)

Motion Range

J1
±170°
J2
+135° - 100°
J3
+70° - 200°
J4
±270°
J5
±130°
J6
±360°
