ABB IRB 340

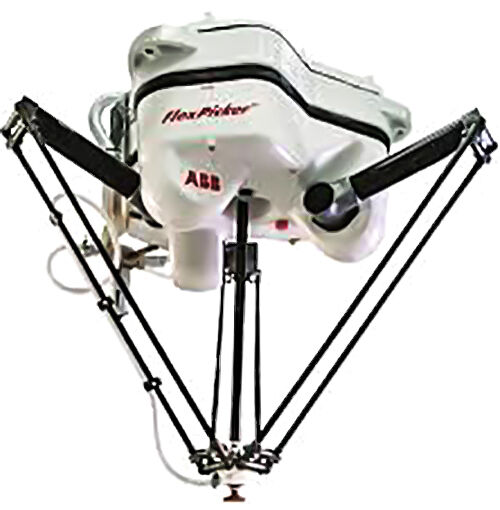

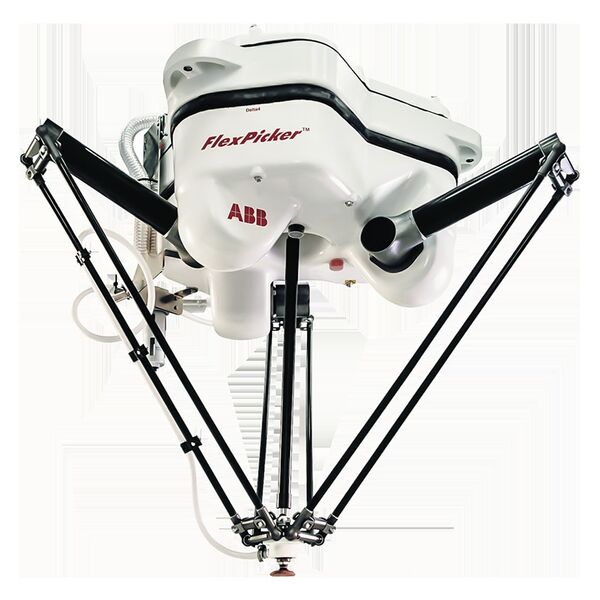

The ABB IRB 340 Flexpicker is a delta robot designed for high-speed pick and place tasks. Capable of 150 picks per minute","this parallel-arm Delta robot is available with either a 1 kg or 2 kg payloads. It also comes in three different versions: standard","washable (IRB 340SA)","and stainless steel (IRB 340SAS).<\/p>\r\n

ABB's IRB 340 IRC5 robot is well-suited for use in the electronic","food","and pharmaceutical industries. Its distinctive configuration allows it to move with unmatched care","precision and speed. Weighing 140 kg","the IRB 340 robot is compact and top-mounted preventing interference from cabling or other hardware. It is also IP55 and cleanroom class 10 certified. The robot uses the same oil","Mobil DTE FM 220","for all axes.
<\/p>\r\n

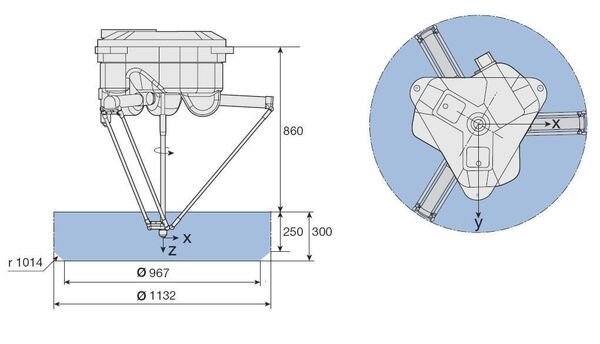

The IRB340 has a working diameter of 1130 mm","height of 250 mm","and unlimited rotation capabilities. The max speed of this robot is 10 m\/s.<\/p>\r\n

For safety","there are double circuits with supervision","e-stops","3-position enabling device and other safety functions.<\/p>\r\n

The IRC5 controller uses TrueMove and QuickMove software for highest speed capabilities and path-following accuracy. The FlexPicker can also track fast moving conveyor belts","up to 350 mm\/s","with high accuracy. <\/p>\r\n

Wash-Down IRB 340SA <\/strong>
The washable version of the ABB IRB 340 IRC5 Delta robot has an IP67 protection rating. It is built to withstand cleaning with a low-pressure application of mild detergent. ABB used corrosion-resistant materials and special paint and sealed covers to protect this robot. The fourth axis of the IRB 340SA has slide bearings to facilitate more thorough spray-downs. <\/p>\r\n

Stainless Steel IRB 340SAS<\/strong>
The cleanest IRB 340 version","the IRB 340SAS IRC5 Flexpicker is built with an easy-to-clean","stainless steel exterior. This nimble delta robot is capable of moving objects delicately and quickly.<\/p>\r\n

The wash-down and stainless steel versions are ideal for packing open food.<\/p>\r\n

For a larger payload","consider ordering a 2kg version: IRB 340\/s","IRB 340SA\/2","or IRB 340SAS\/2.<\/p>"]
