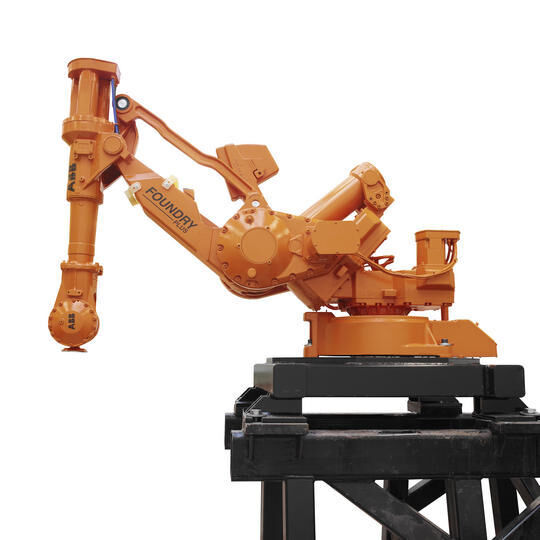

The ABB IRB 4450S is engineered to work downwards for mounting on top of die casting or injection molding machines. The versatile","high-performance shelf robot's unyielding construction makes for long intervals between routine maintenance. The ABB IRB 4450S S4C is proven robot for good accuracy and cycle time performance.<\/p>\r\n

The IRB 4450S S4C has very high levels of reliability. The IRB 4450S optimizes the acceleration and retardation","resulting in shortest cycle times possible due to a unique motion control. The robot is one of the best in class in regards to patch accuracy and position repeatability. The ABB IRB 4450S has a strong","forceful design making it able to maximize utilization and stand the harshest of environments.<\/p>\r\n

There are also used ABB IRB 4450S robots available at Robots.com. All used IRB 4450S robots go through an intense refurbishment process.<\/p>\r\n

New or used","you will not be disappointed with the performance of the ABB IRB 4450S!<\/p>"]

Specs

Reach
2400 mm
Axes
6
Repeatability
0.1 mm
Mass
0 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
150 °/s (2.62 rad/s)
J2
150 °/s (2.62 rad/s)
J3
150 °/s (2.62 rad/s)
J4
360 °/s (6.28 rad/s)
J5
360 °/s (6.28 rad/s)
J6
450 °/s (7.85 rad/s)

Motion Range

J1
±330°
J2
±165°
J3
±125°
J4
±400°
J5
±240°
J6
±800°
