ABB IRB 460
Contact us:
Reach
240 mm
Axes
4
Reach
240 mm
Axes
4
Details

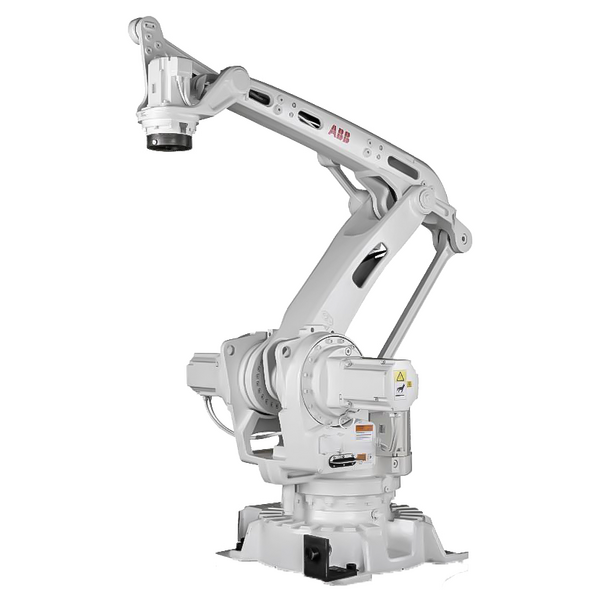

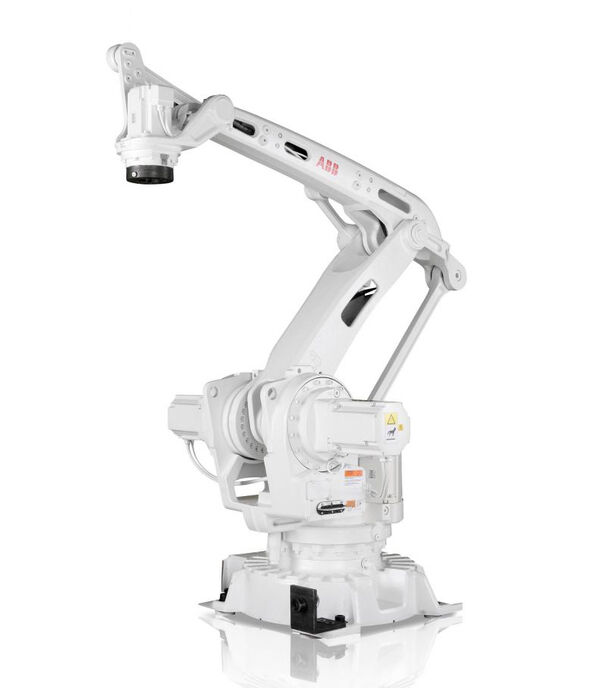

The ABB IRB 460 is a compact robot ideal for bag palletizing applications. This IRB460 IRC5 robot has a 110 kg payload and 4 axes. The ABB IRB 460 IRC5 is one of the fastest palletizing robots, significantly decreasing your cycle times and increasing your production. Due to its motion control software, the IRB 460 model is very precise and effective.
Specs
Reach
240 mm
Axes
4
Repeatability
0.11 mm
Mass
925 kg
Structure
Articulated
Mounting
Floor
Motion Speed
J1
145 °/s (2.53 rad/s)
J2
110 °/s (1.92 rad/s)
J3
120 °/s (2.09 rad/s)
J4
400 °/s (6.98 rad/s)
Motion Range
J1
+165° - 165°
J2
+85° - 40°
J3
+120° - 20°
J4
+300° - 400°
