ABB IRB 5400-22

ABB

Request a Quote 1/4

Contact us:
Reach
Reach
1620 mm
Axes
Axes
6

Details

["

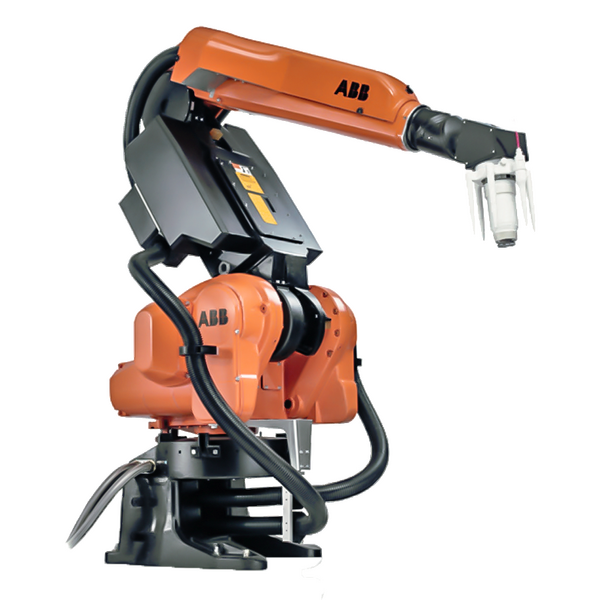

The ABB IRB 5400-22 IRC5P Process Robot is an enhanced version of the efficient Paint Process Robot IRB 5400-02.<\/p>\r\n

The extensive work envelope","combined with the increased acceleration and the increased capacity","has allowed this robot to be an incredible cycle time saver.<\/p>\r\n

There are a variety of refurbished robots available","such as the used ABB IRB 5400-22. The used IRB 5400-22 has undergone Robots.com' intense refurbishment process.<\/p>\r\n

The new or used IRB 5400-22 IRC5P Process Robot has integrated color change valves","pumps","flow sensors","air and paint regulators","high-voltage controller","and bell rotation controller.<\/p>"]

Specs

Reach
1620 mm
Axes
6
Repeatability
0.15 mm
Mass
820 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
137 °/s (2.39 rad/s)
J2
137 °/s (2.39 rad/s)
J3
137 °/s (2.39 rad/s)
J4
440 °/s (7.68 rad/s)

Motion Range

J1
±300°
J2
±160°
J3
±150°
J4
±920°
