Details

["

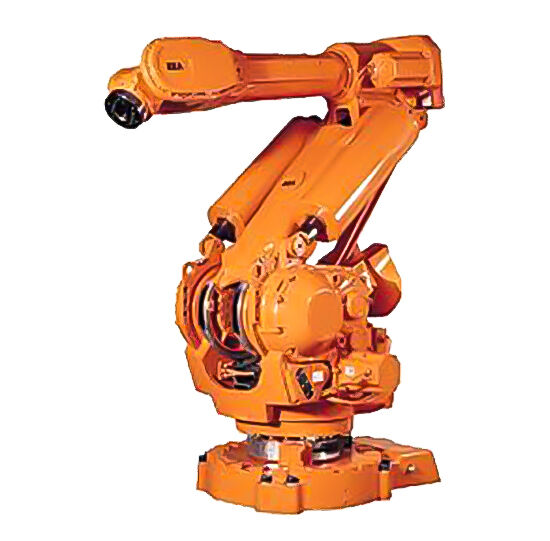

Fill your factory automation robot needs with the ABB IRB 6400 series.
<\/p>\r\n

The ABB IRB 6400 S4C series accounts for one third of the ABB robots installed. The IRB 6400R has a handling capacity from 100 kg to 200 kg and a reach from 2.5m to 3m. With 6 axes","the IRB 6400 S4C series can handle spot welding","press tending","material handling","machine tending","palletizing","and assembly with different arm variants and payload capacities.<\/p>\r\n

The used ABB IRB 6400 robot is also available. Robots.com puts all their refurbished robots through an intense reconditioning process","bringing them back to like-new condition! Get your new or used ABB IRB 6400 series with Robots.com","today! <\/p>"]

Specs

Reach
2900 mm
Axes
6
Repeatability
0.1 mm
Mass
0 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
110 °/s (1.92 rad/s)
J2
100 °/s (1.75 rad/s)
J3
100 °/s (1.75 rad/s)
J4
210 °/s (3.67 rad/s)
J5
150 °/s (2.62 rad/s)
J6
210 °/s (3.67 rad/s)

Motion Range

J1
±360°
J2
±155°
J3
±138°
J4
±600°
J5
±240°
J6
±600°
