Reach
Reach
1437 mm
Axes
Axes
6

Details

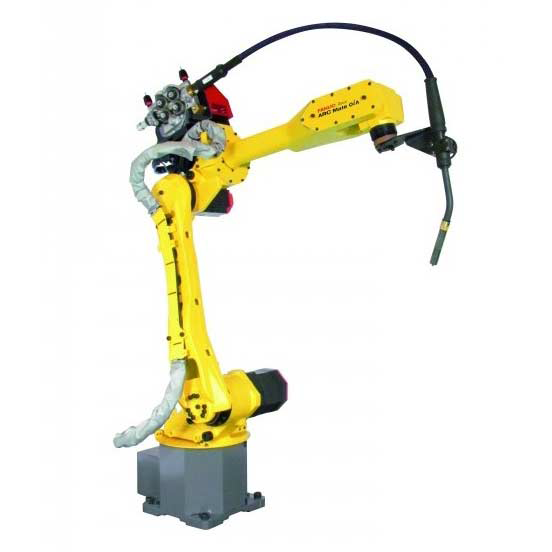

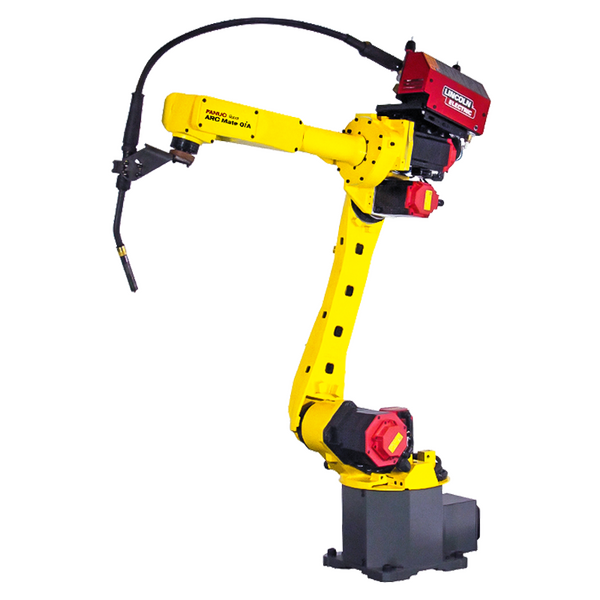

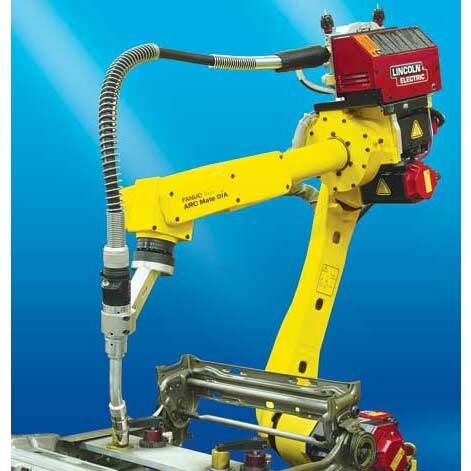

The Fanuc ARC Mate 0iA robot is a very lightweight and compact robot, specifically made for arc welding applications. The lightweight ARC Mate 0-ia arm provides high speed and accuracy in the arc welding process. The Fanuc Arc Mate 0iA robot features a 3kg payload and offers digital communication between Lincoln Arc Welding Power Supply.

The Fanuc ARC Mate 0iA robot is equipped with the latest servo technology that increases its speed and accuracy. If you are looking for a robot to advance your arc welding process, this ARC Mate 0-iA is sure to do the trick. This robot can be paired with the R-30iA controller.

Specs

Reach
1437 mm
Axes
6
Repeatability
0.08 mm
Mass
110 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle

Motion Speed

J1
225 °/s (3.93 rad/s)
J2
215 °/s (3.75 rad/s)
J3
225 °/s (3.93 rad/s)
J4
425 °/s (7.42 rad/s)
J5
425 °/s (7.42 rad/s)
J6
625 °/s (10.91 rad/s)

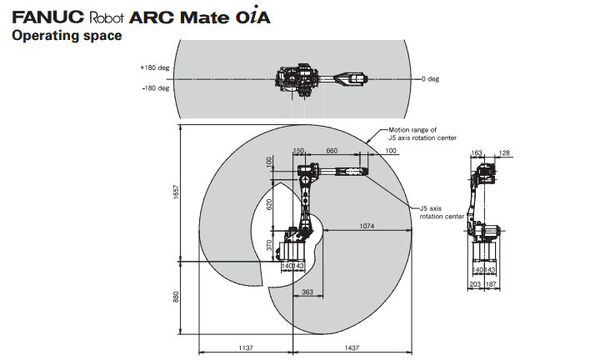

Motion Range

J1
360°
J2
250°
J3
455°
J4
380°
J5
280°
J6
720°
