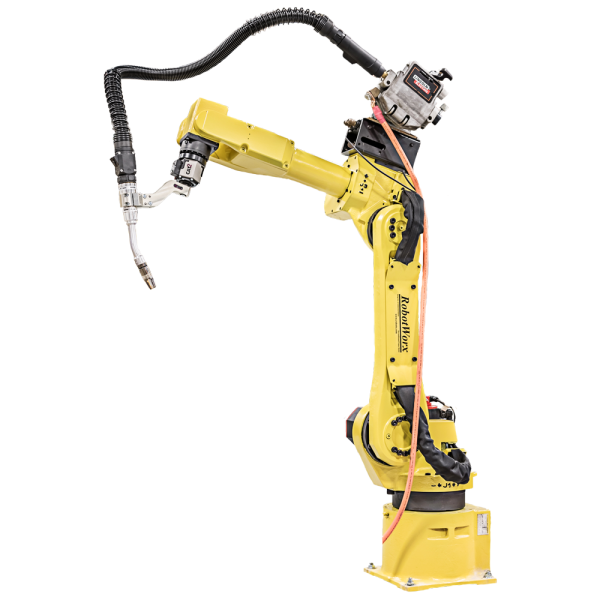

Fanuc ARC Mate 100iBe

Fanuc Fanuc ARC Mate Series Robot

Request a Quote 1/4

Contact us:

Details

The Fanuc ARC Mate 100iBe is a value oriented robot designed to deliver peak productivity for arc welding robot applications. It has six axes, a remarkable reach/stroke ratio, and elevated axis speeds. The compact Fanuc 100iBe R-J3iB welding robot design reduces installation and transportation timing.

The controller has been integrated into the base of the welding robot to simplify installation and conserve production floor space. All basic arc welding robotic software features are supported to provide superior performance for simple and complex arc welding applications. The ARC Mate 100iBe R-J3iB is capable of arc welding as well as a variety of welding applications.

The 100iBe robot has a condensed wrist design minimizes air-cut times, high axis speeds enhances product output, and is available with 2 or 6 brakes.

If you are looking for further cost savings, then consider a used ARC Mate 100iBe. Robots.com sends every refurbished robot through an intense reconditioning process and ensures that your used ARC Mate 100iBe is in great condition.

Specs

Reach
1373 mm
Axes
6
Repeatability
0.08 mm
Mass
238 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
150 °/s (2.62 rad/s)
J2
160 °/s (2.79 rad/s)
J3
170 °/s (2.97 rad/s)
J4
400 °/s (6.98 rad/s)
J5
400 °/s (6.98 rad/s)
J6
520 °/s (9.08 rad/s)

Motion Range

J1
±340°
J2
±250°
J3
±340°
J4
±380°
J5
±280°
J6
±720°
