Fanuc ARC Mate 120iB/10LT

Fanuc Fanuc Toploader Robots Series

Request a Quote 1/4

Contact us:
Reach
Reach
1735 mm
Axes
Axes
6
Applications
Applications

Details

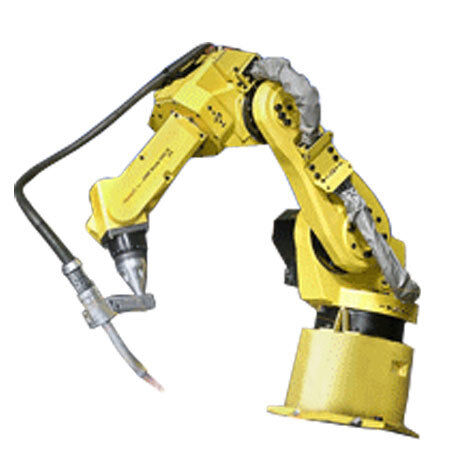

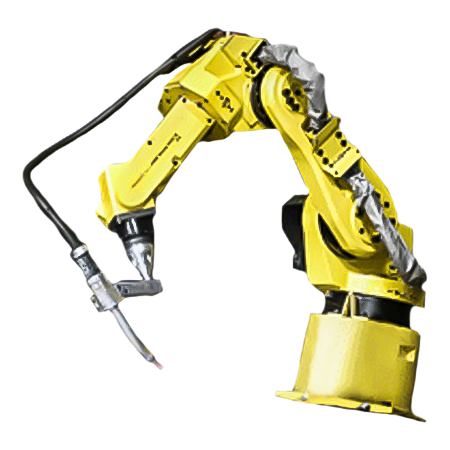

The Fanuc ARC Mate 120iB/10LT is a six-axis, overhead rail-mounted robot that provides accurate and consistent path performance necessary for welding and cutting.

The Arc Mate 120iB/10LT RJ3iB industrial robot features the ability to interface with most types of servo driven or indexing positioners while brushless AC servo motors reduce motor maintenance. Fail-safe brakes on all six axes provide added safety to this "mobile" robot that has the ability to service multiple fixtures or large parts, making the Arcmate 120iB a popular robot. Modular rails can be attached to stand-alone support columns with variable height attachment.

There are used ARC Mate 120iB/10LT robots available through Robots.com, as well. Each reconditioned 120iB/10LT goes through a meticulous process to ensure the robot is in perfect condition and ready to provide maximum results on your production line.

Specs

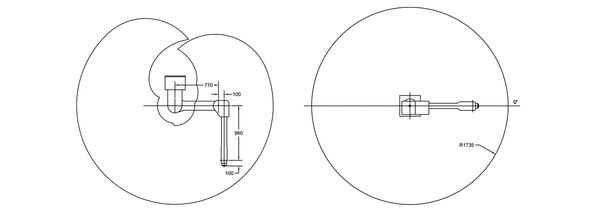

Reach
1735 mm
Axes
6
Repeatability
0.1 mm
Mass
149 kg
Structure
Articulated
Mounting
Inverted

Motion Speed

J1
2.75 m/s
J2
165 °/s (2.88 rad/s)
J3
175 °/s (3.05 rad/s)
J4
350 °/s (6.11 rad/s)
J5
340 °/s (5.93 rad/s)
J6
520 °/s (9.08 rad/s)

Motion Range

J1
+2.4m° - 32m°
J2
±300°
J3
±455°
J4
±400°
J5
±280°
J6
±900°
