Details

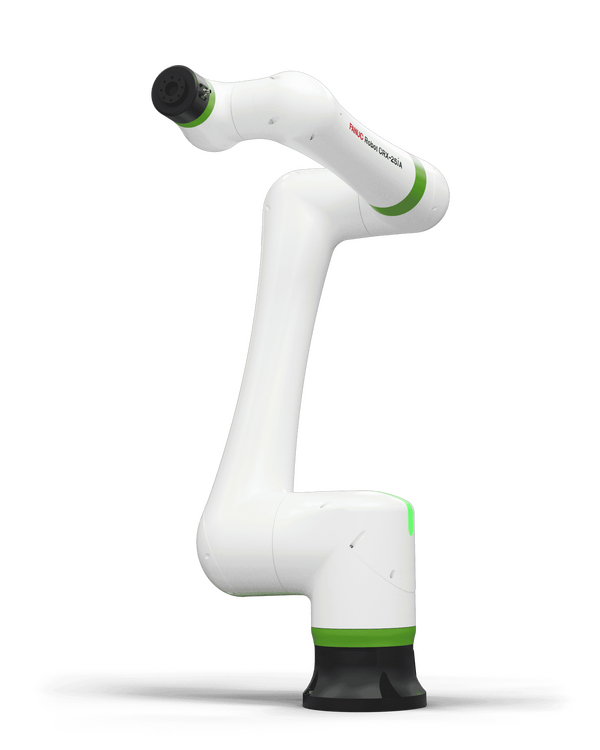

The CRX-25iA stands as the most robust lifter within FANUC's CRX series of Collaborative robots up to this point. Boasting a payload capacity ranging from 25kg to 30kg and a reach spanning 1756mm to 1889mm, the CRX-25iA is exceptionally well-suited for tasks demanding increased lifting capabilities in collaborative settings. Its versatility shines through applications such as Palletizing, Material Handling, Machine Load / Unload, Welding, and numerous other tasks. With a track record of 8 years of zero maintenance, the CRX Series of Cobots delivers the reliable industrial performance that FANUC customers have come to rely upon.

Specs

Reach
1889 mm
Axes
6
Repeatability
0.05 mm
Mass
135 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle

Motion Speed

J1
1000 °/s (17.45 rad/s)
J2
1000 °/s (17.45 rad/s)
J3
1000 °/s (17.45 rad/s)
J4
1000 °/s (17.45 rad/s)
J5
1000 °/s (17.45 rad/s)
J6
1000 °/s (17.45 rad/s)

Motion Range

J1
360
J2
360
J3
540
J4
380
J5
360
J6
450
