Fanuc LR Mate 200iD/4SH

Fanuc Fanuc LR Mate Series Robot

Request a Quote 1/4

Contact us:

Details

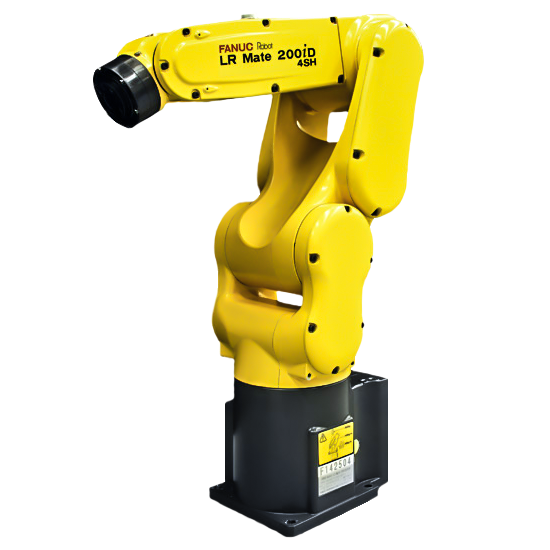

The Fanuc LR Mate 200iD/4SH robot is a compact, high speed robot that features a 4kg payload and comes with the advanced R-30iB controller. The slim arm allows for operation in tight spaces, while its light weight allows for it to be mounted on the floor, upside down, or at an angle. Capable of performing a wide variety of applications, ranging from assembly to packaging, the Fanuc LRMate 200iD/4SH is a great addition to your work floor.

Specs

Reach
550 mm
Axes
5
Repeatability
0.02 mm
Mass
19 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle

Motion Speed

J1
460 °/s (8.03 rad/s)
J2
460 °/s (8.03 rad/s)
J3
520 °/s (9.08 rad/s)
J4
560 °/s (9.77 rad/s)
J5
1500 °/s (26.18 rad/s)

Motion Range

J1
+340° - 360°
J2
±230°
J3
±402°
J4
±240°
J5
±720°
