Fanuc LR Mate 200iD/7H

Fanuc Fanuc LR Mate Series Robot

Request a Quote 1/4

Contact us:

Details

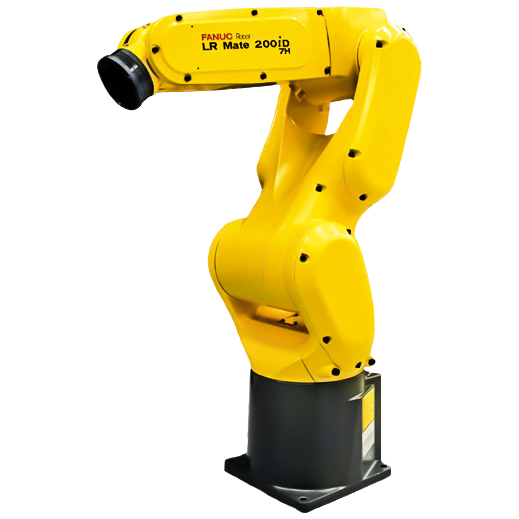

The Fanuc LR Mate 200iD/7H is a compact, small robot with high speed and performance. This small robot can handle a heavier payload of 7kg, and comes with the advanced R-30iB controller. The Fanuc LRMate 200iD/7H can be mounted on the floor, upside-down, or at an angle, and can perform a variety of applications ranging from packaging to material removal. If you are looking for a small robot to deliver ultimate performance, the LR Mate 200iD 7H is a great fit.

Specs

Reach
717 mm
Axes
5
Repeatability
0.02 mm
Mass
24 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle

Motion Speed

J1
450 °/s (7.85 rad/s)
J2
380 °/s (6.63 rad/s)
J3
520 °/s (9.08 rad/s)
J4
545 °/s (9.51 rad/s)
J5
1500 °/s (26.18 rad/s)

Motion Range

J1
+340° - 360°
J2
±245°
J3
±420°
J4
±250°
J5
±720°
