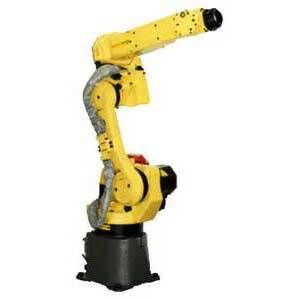

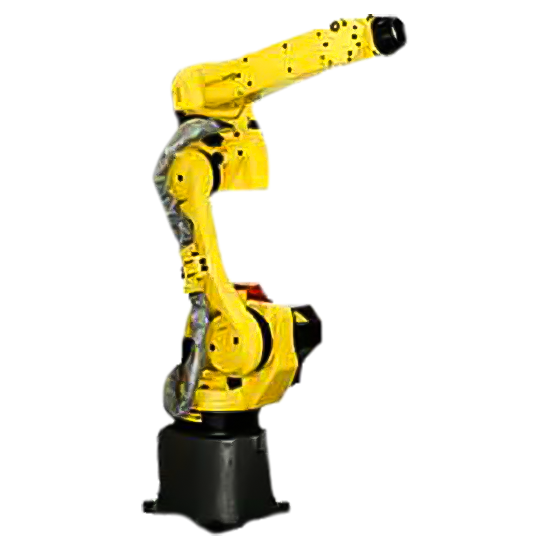

Great for a variety of applications, the Fanuc M-10iA/10S has a shorter robot arm for operating in tighter spaces. It has a 10kg payload and +/- 0.05 repeatability, with the highest wrist moments and inertia in its class, making a it a high performance industrial robot.

The M-10iA/10S has cable routing integrated and is easy to maintain. By integrating the cable, it has less wear and tear on its cabling, which cuts down on maintenance costs over the life of the robot. It also offers great flexibility with a variety of mounting options, optimizing the robot's angle during operation. The small footprint allows it to fit in tight work spaces.

With advanced servo technology, the Fanuc M-10iA/10S will provide precision and reliability to your automation needs.

Specs

Reach
1098 mm
Axes
6
Repeatability
0.05 mm
Mass
130 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle

Motion Speed

J1
220 °/s (3.84 rad/s)
J2
230 °/s (4.01 rad/s)
J3
270 °/s (4.71 rad/s)
J4
410 °/s (7.16 rad/s)
J5
410 °/s (7.16 rad/s)
J6
610 °/s (10.65 rad/s)

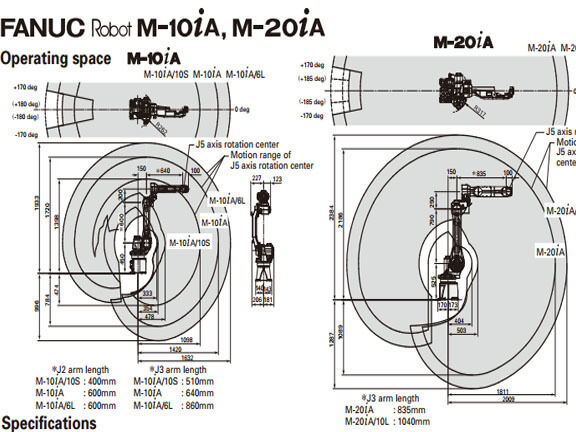

Motion Range

J1
+340° - 360°
J2
±250°
J3
±340°
J4
±380°
J5
±380°
J6
±720°
