Details

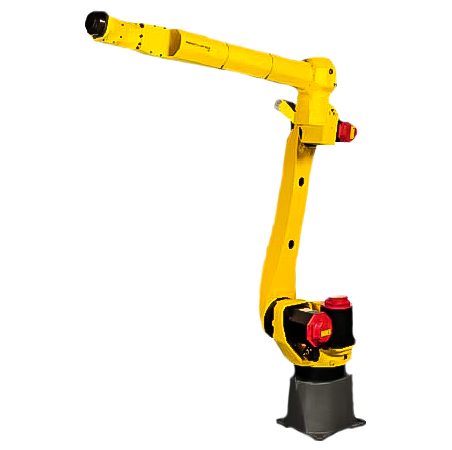

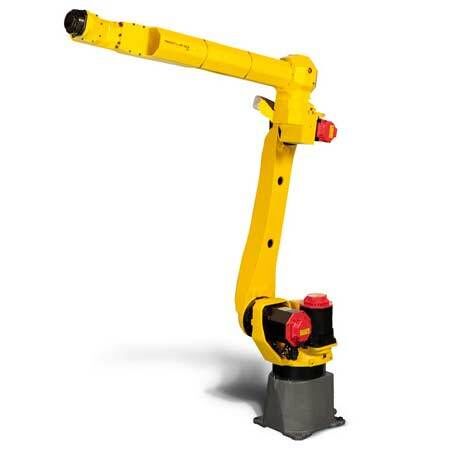

The Fanuc M-10iA/8L is an advanced long reach robot with 8kg payload. This M-10iA/8L robot has a 2020 mm reach and the same slim wrist design as the M-10iA/12. The slim wrist allows it to fit into compact spaces and difficult angles during the application process.

The Fanuc M-10iA/8L is ideal for material handling, machine tending, and packaging applications. The long reach and high repeatability give it the ability to decrease cycle times, while still improving quality and accuracy as well.

If you are looking for high speed material handling for light objects, this robot is just what you need.

Specs

Reach
2028 mm
Axes
6
Repeatability
0.08 mm
Mass
150 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
200 °/s (3.49 rad/s)
J2
200 °/s (3.49 rad/s)
J3
210 °/s (3.67 rad/s)
J4
430 °/s (7.5 rad/s)
J5
430 °/s (7.5 rad/s)
J6
630 °/s (11 rad/s)

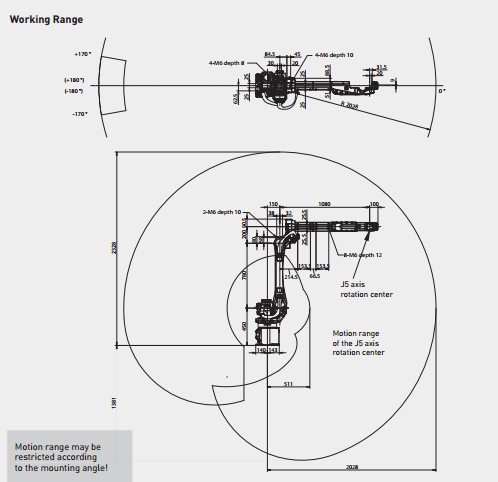

Motion Range

J1
+340° - 370°
J2
±255°
J3
±462°
J4
±400°
J5
+280° - 360°
J6
+540° - 900°
