Details

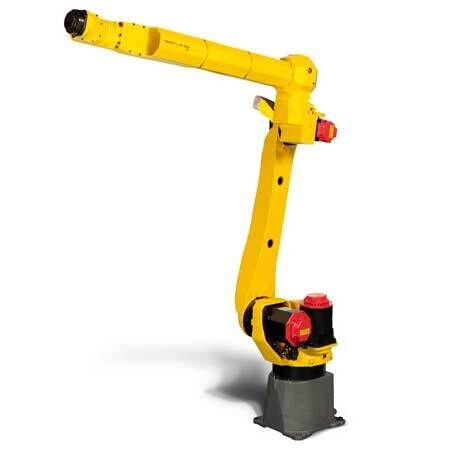

The Fanuc M-16i robot provides an intelligent automation solution for a variety of applications. When it comes to material handling and removal, loading and unloading, assembly, and even water jet cutting, the M16i model is fast and effective.

The Fanuc M-16i offers 6 axes of flexibility and a payload capacity of 16 kg. The J6 axis is capable of moving up to 450 degrees in a second. The M-16i can use the RJ2 or the RJ3 controller.

This user-friendly, servo-driven robot is designed to make maintenance simple. From grease fittings to brushless AC motors, the M-16i's components are easy to service, lubricate, and replace. The Fanuc M-16i has a modular construction, which means it is easily updated or integrated. The body of the Fanuc M-16 is water and dust resistant with sealed bearings and drives. These design choices give this model even greater longevity and reliability.

If you are looking to save costs even further, then consider a used Fanuc M-16i robot by Robots.com. All of the reconditioned M-16i robots go through an intense refurbishment process. Both the new and refurbished robots can provide excellent reliability and are ready to increase performance on your production line today!

Specs

Reach
1605 mm
Axes
6
Repeatability
0.08 mm
Mass
270 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle

Motion Speed

J1
140 °/s (2.44 rad/s)
J2
140 °/s (2.44 rad/s)
J3
140 °/s (2.44 rad/s)
J4
330 °/s (5.76 rad/s)
J5
330 °/s (5.76 rad/s)
J6
450 °/s (7.85 rad/s)

Motion Range

J1
±165°
J2
+162° - 78°
J3
+285° - 170.5°
J4
±200°
J5
±140°
J6
±450°
