Reach
Reach
1885 mm
Axes
Axes
6

Details

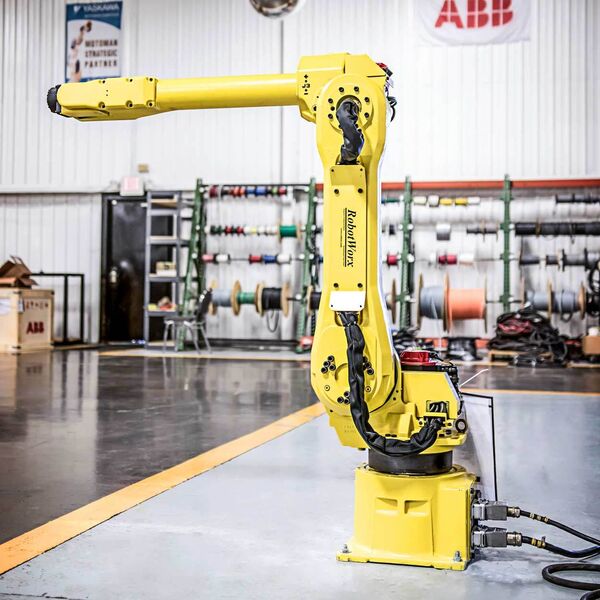

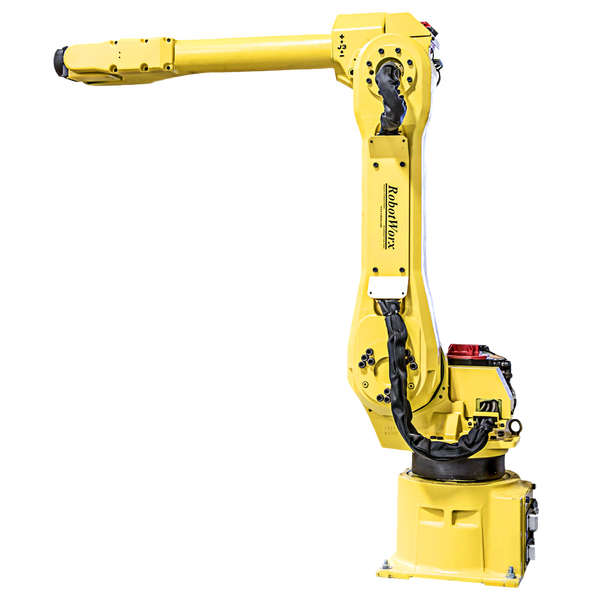

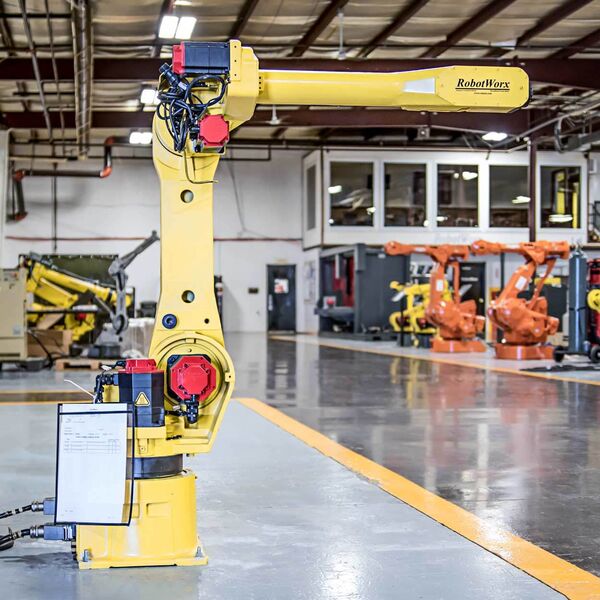

The Fanuc M-16iB/10L brings its long reach as well as its six axes and modular construction, electric servo-driven self to your production line. The M-16iB/10L was designed for various industrial processes, including material handling and dispensing.

The M16iB/10L RJ3iB is compact in design with improved motion range and speed and works well in narrow settings. It lengthens the horizontal reach of the standard version to 1885 mm and has a payload of 10 kg. The Fanuc M 16iB/10L also allows high-density installation of robots and peripherals.

Robots.com also excels at refurbishing refurbished robots. The experts at Robots.com work hard to send all used Fanuc M-16iB/10L robots through an intense refurbishment process, making them as good as new.

Specs

Reach
1885 mm
Axes
6
Repeatability
0.1 mm
Mass
230 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle

Motion Speed

J1
165 °/s (2.88 rad/s)
J2
165 °/s (2.88 rad/s)
J3
175 °/s (3.05 rad/s)
J4
350 °/s (6.11 rad/s)
J5
340 °/s (5.93 rad/s)
J6
520 °/s (9.08 rad/s)

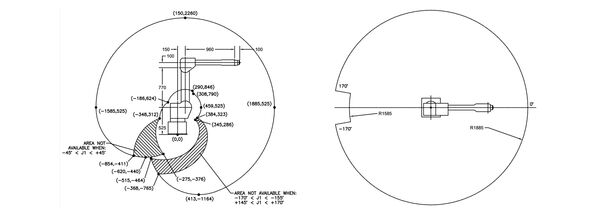

Motion Range

J1
±170°
J2
+160° - 90°
J3
+285° - 170°
J4
±200°
J5
±140°
J6
±450°
