Details

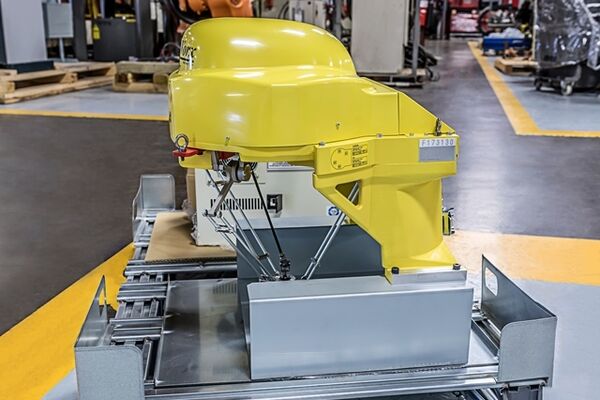

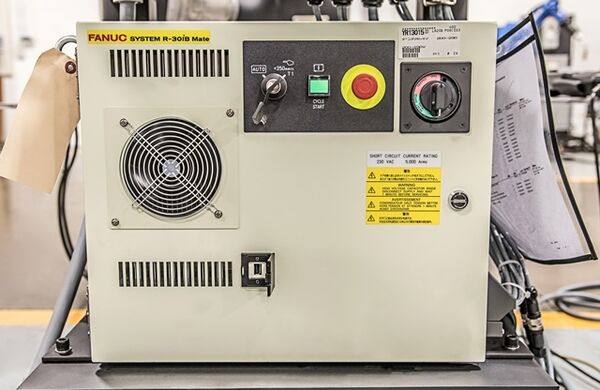

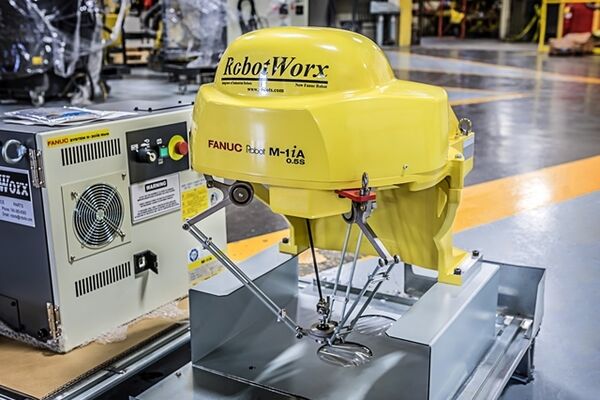

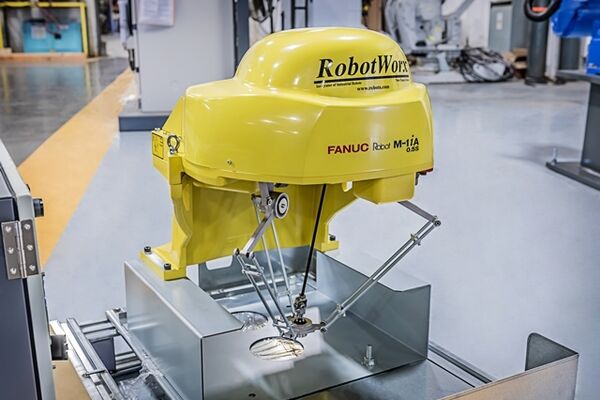

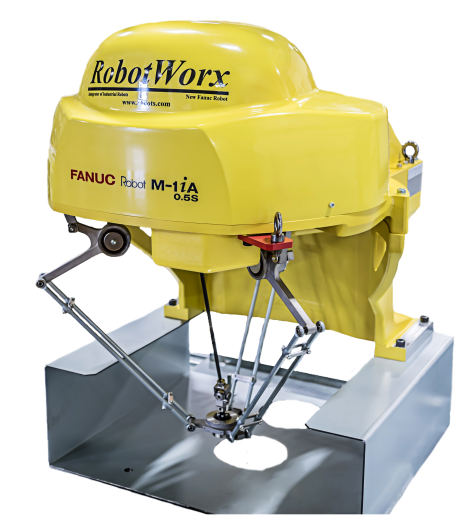

This 4-axis version of the Fanuc M-1iA/0.5S Genkotsu (fist) robot can reach speeds up to 3000 degrees per second. This makes the Fanuc M1iA/0.5S R30iA /R-30iB a first choice for applications with light payloads and speed requirements. It can be installed as a robot only (no stand), as a desktop mount with a stand, at an angle, or on the ceiling. The lightweight design of the M 1-iA/0.5S robot makes it flexible for installation in small spaces.

Robots.com also provides reconditioned Fanuc M-1iA/0.5S robots. Experts at Robots.com take all used M1iA/0.5S robots through an intense refurbishment process that bring the robot back to mint condition.

Specs

Reach
280 mm
Axes
4
Repeatability
0.02 mm
Mass
14 kg
Structure
Delta, Parallel Link
Mounting
Shelf

Motion Speed

J1
3000 °/s (52.36 rad/s)

Motion Range

J1
±720°
