Fanuc M-2iA/3SL
Reach
1130 mm
Axes
4
Reach
1130 mm
Axes
4
Details

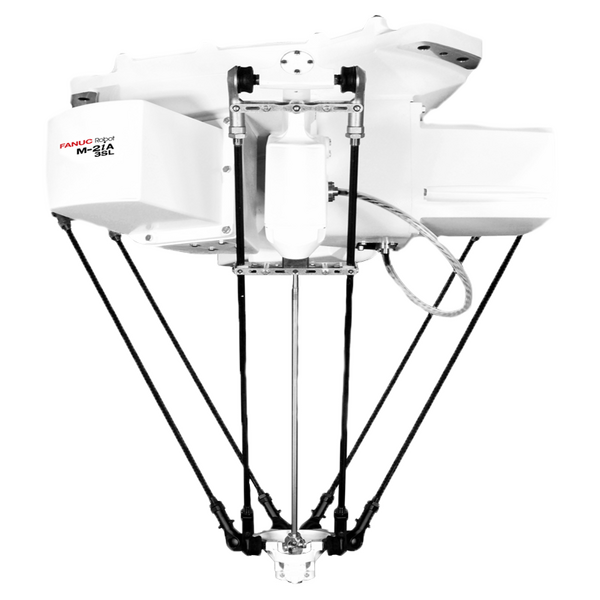

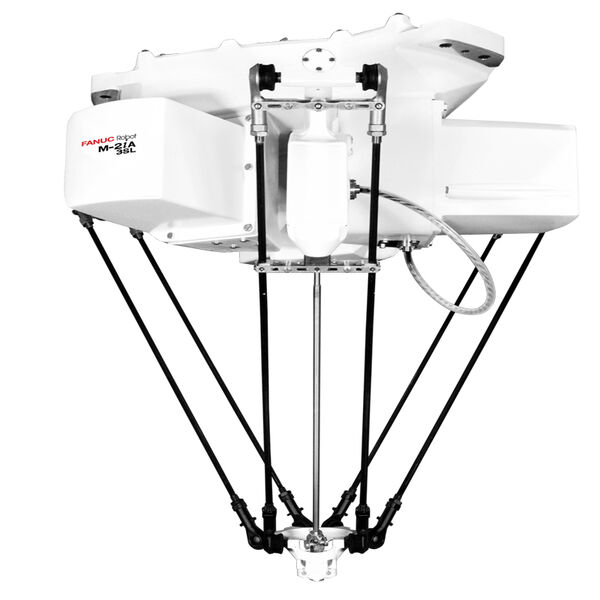

The Fanuc M-2iA/3SL is part of Fanuc's new spider line. The M2ia/3sl R30iB features powerful servo motors that provide high acceleration and fast cycle times. This Fanuc M 2ia/3sl R-30iB comes with a hollow wrist, 3kg payload, 1130mm reach, IP69K protection, and is food validated!
The M-29A/3SL can be paired with a variety of controllers such as the R-30iB Open Air Cabinet, the R-30iB Mate cabinet, the R-30iB A-cabinet, and the R-30iB iPendant touch.
Specs
Reach
1130 mm
Axes
4
Repeatability
0.1 mm
Mass
120 kg
Structure
Delta, Parallel Link
Mounting
Inverted
Motion Speed
J1
3500 °/s (61.09 rad/s)
Motion Range
J1
±1130°
J2
±1130°
J3
±400°
J4
±720°
