Reach
Reach
3143 mm
Axes
Axes
4
Applications
Applications

Details

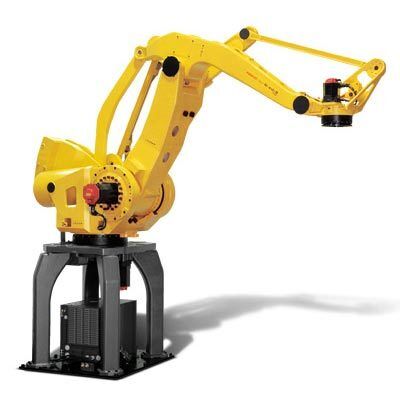

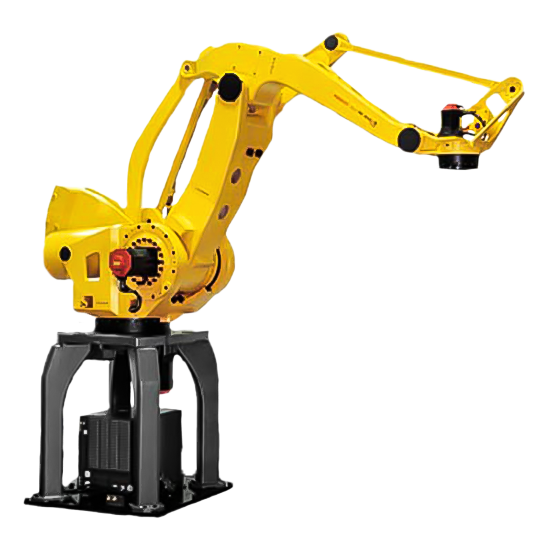

The Fanuc M-410iB/700 is ideal for palletizing applications. The Fanuc M410iB/700 can handle super heavy payloads, up to 700kg! The M 410iB/700 features visual inspection, motion optimization, and much more! The Fanuc M410iB/700 is the strongest of its series.

Specs

Reach
3143 mm
Axes
4
Repeatability
0.5 mm
Mass
2700 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
60 °/s (1.05 rad/s)
J2
60 °/s (1.05 rad/s)
J3
60 °/s (1.05 rad/s)
J4
120 °/s (2.09 rad/s)

Motion Range

J1
±360°
J2
±144°
J3
±136°
J4
±540°
