3130 mm
Axes
Axes
4
Applications
Applications

Details

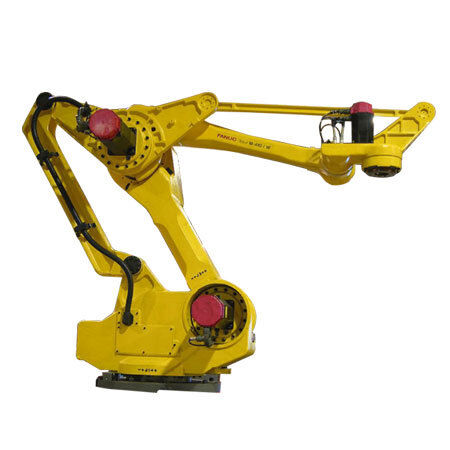

The Fanuc M-410iWW palletizing robot is an extra heavy duty robot that is designed for high-speed manufacturing applications. Featuring 4-axes, a 400 kg payload, and a 2000 kgf-cm-sec2 wrist inertia, the Fanuc M-410iWW has been successful in automotive, brick and beverage material handling, but can be used for many other industries. The M-410iWW has proven effective in layer palletizing, heavy product palletizing and steel/wire handling and barrel/drum handling.

The new and used Fanuc M-410iWW can achieve comparable cycle rates with other robotic and non-robotic palletizers with lower payload capability, while offering increased flexibility and installation with limited floor space. There are also many EOAT options are available for this Fanuc robot.

Robots.com takes pride in their refurbished robots as they go through an intense reconditioning process.

Whether you purchase the new or reconditioned M410iWW, both can be paired with the RJ2 or RJ3 Fanuc controller.

Specs

Reach
3130 mm
Axes
4
Repeatability
0.5 mm
Mass
2430 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
70 °/s (1.22 rad/s)
J2
70 °/s (1.22 rad/s)
J3
70 °/s (1.22 rad/s)
J4
180 °/s (3.14 rad/s)

Motion Range

J1
±180°
J2
+100° - 45°
J3
+10° - 125°
J4
±270°
