Details

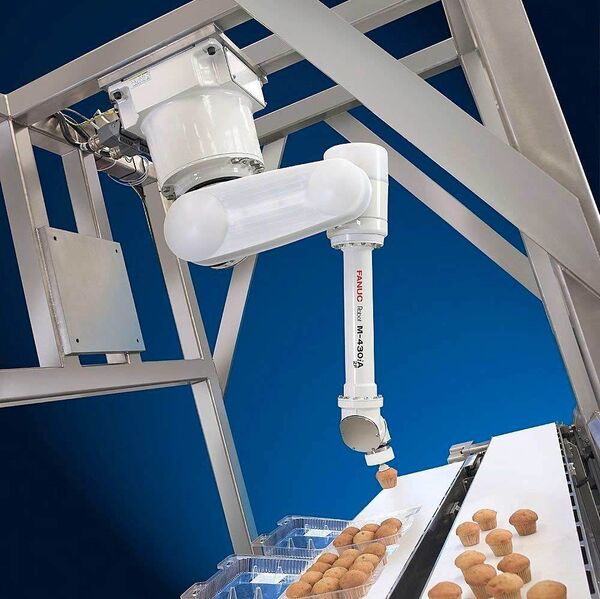

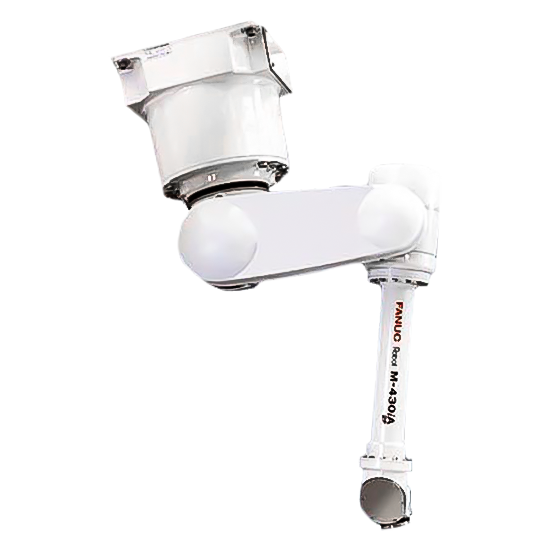

The Fanuc M-430iA/4FH is a revolutionary designed robot, ideal for assembly, part transfer, and packaging applications. The Fanuc M430iA/4FH is popular in the food handling industry, since it is approved to work not only with secondary food handling, but also primary food handling. The M 430iA/4FH has 5 axes of motion and a 4kg payload.

With its slim arm and compact design, the M-430iA/4FH can be mounted in various locations including floor, wall, ceiling, or at an angle, taking up minimal floorspace in your shop. This Fanuc robot is also known for its best in class speeds and wrist movement specs.

Get ahead with this intelligent Fanuc M-430iA/4FH robot.

Specs

Reach
900 mm
Axes
5
Repeatability
0.5 mm
Mass
55 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle

Motion Speed

J1
300 °/s (5.24 rad/s)
J2
320 °/s (5.59 rad/s)
J3
320 °/s (5.59 rad/s)
J4
360 °/s (6.28 rad/s)
J5
2000 °/s (34.91 rad/s)

Motion Range

J1
±360°
J2
±230°
J3
±383°
J4
±300°
J5
±540°
