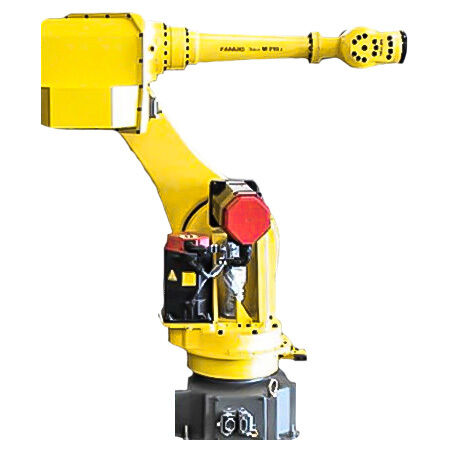

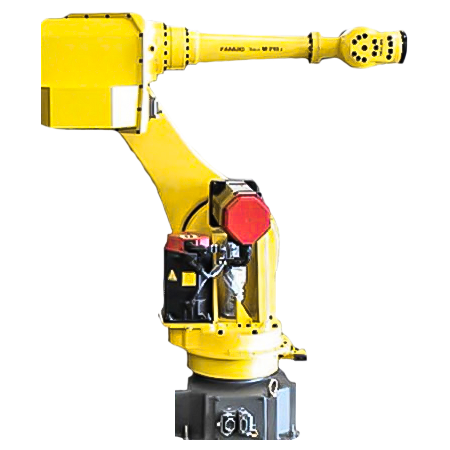

Ideal for medium to heavy material handling processes, the Fanuc M-710iB/70T has six axes, modular construction, and is an electric servo-driven articulated gantry robot. It can improve machine productivity by as much as 30%.

The overhead rail mounted design provides for precise, high speed operations and maximum reliability. This design reduces the installment time and start-up expense and is flexible enough to easily adapt to existing plant layouts.

With a focus on material handling and machine tending applications, it is able to service multiple vertical and horizontal machines. Its performance adds value to post processing procedures.

The used M-710iB/70T is also available through Robots.com if you are looking to find a high-quality refurbished system.

Specs

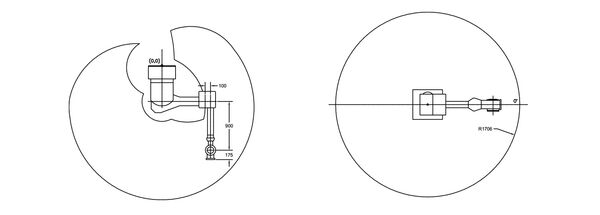

Reach
1706 mm
Axes
6
Repeatability
0.15 mm
Mass
695 kg
Structure
Articulated
Mounting
Inverted

Motion Speed

J1
2.5 m/s
J2
120 °/s (2.09 rad/s)
J3
150 °/s (2.62 rad/s)
J4
240 °/s (4.19 rad/s)
J5
240 °/s (4.19 rad/s)
J6
340 °/s (5.93 rad/s)

Motion Range

J1
+7.2m° - 46.2m°
J2
±130°
J3
+295° - 125°
J4
±270°
J5
±125°
J6
±360°
