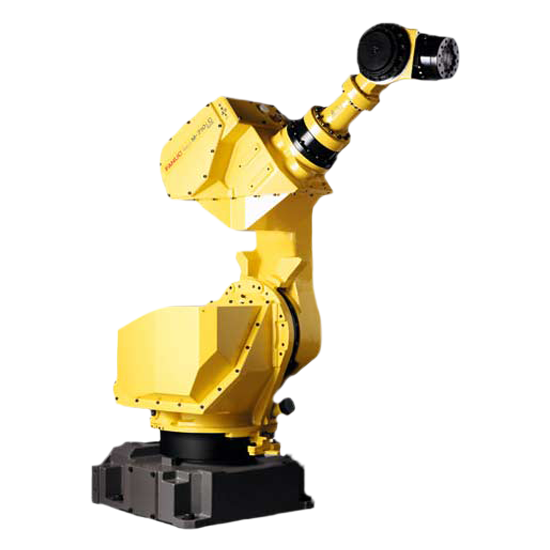

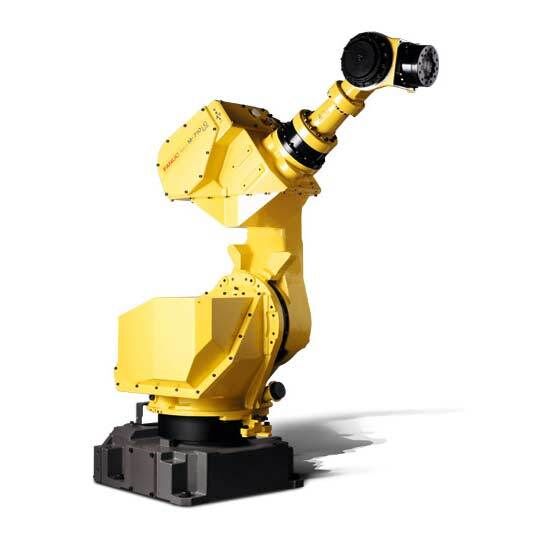

The Fanuc M-710iC/50S robot is the short arm variant of this series. This M710iC/50S model is compact and able to work in narrow environments and smaller work envelopes. Designed for part transfer robot applications, the Fanuc M 710iC/50S has a 50kg payload and 1360mm reach.

Specs

Reach
1359 mm
Axes
6
Repeatability
0.07 mm
Mass
545 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle

Motion Speed

J1
175 °/s (3.05 rad/s)
J2
175 °/s (3.05 rad/s)
J3
175 °/s (3.05 rad/s)
J4
250 °/s (4.36 rad/s)
J5
250 °/s (4.36 rad/s)
J6
355 °/s (6.2 rad/s)

Motion Range

J1
±360°
J2
±169°
J3
±376°
J4
±720°
J5
±250°
J6
±720°
