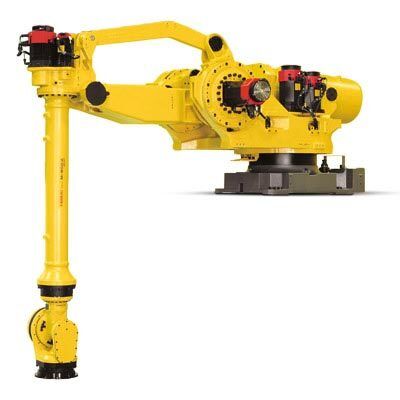

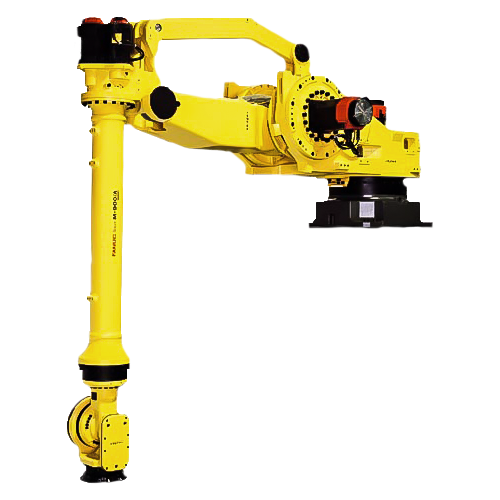

The Fanuc M-900iA/200P is a long reach version of the 900iA series. The Fanuc M900iA/200P can handle up to a 200kg payload and is rack mounted overhead. Ideal for heavy material handling, the M900iA/200P is sure to deliver high performance and reliability. Its mechanical design decreases downtime and minimizes spare part requirements.

Specs

Reach
3507 mm
Axes
6
Repeatability
0.3 mm
Mass
2670 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle

Motion Speed

J1
110 °/s (1.92 rad/s)
J2
95 °/s (1.66 rad/s)
J3
95 °/s (1.66 rad/s)
J4
95 °/s (1.66 rad/s)
J5
96 °/s (1.68 rad/s)
J6
165 °/s (2.88 rad/s)

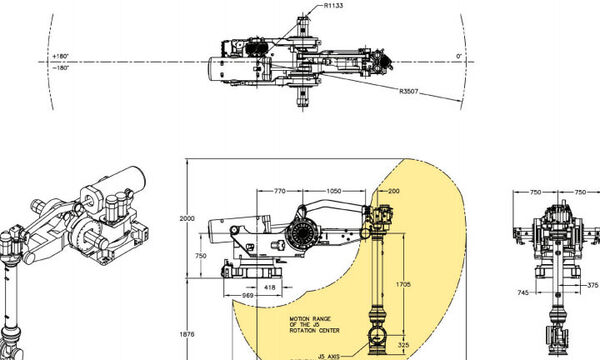

Motion Range

J1
±360°
J2
±180°
J3
±180°
J4
±720°
J5
±230°
J6
±720°
