Reach
Reach
2832 mm
Axes
Axes
6

Details

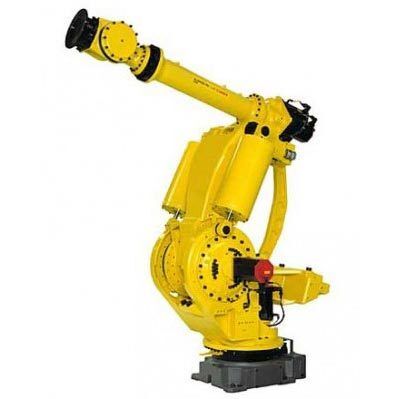

The heavy-duty Fanuc M-900iA/600 features a rugged wrist design that performs reliably in even the harshest manufacturing environments. It is also available with an optional 700kg payload wrist. Car chassis and other heavy parts can be lifted and manipulated with the M900iA/600 RJ3iB.

The slim and rugged arm design of the M-900iA/600 helps to decrease maintenance time and improve the overall service life. It simplifies the hose and cable dress out and rates the "best in class" for the wrist moment and inertia. You can expect amazing uptime and productivity with the Fanuc M900iA/600 on your production line.

If you are looking for a used M-900iA/600 then you have come to the right place! Robots.com experts work hard to bring their reconditioned robots back up to like-new condition. Each used Fanuc M-900iA/600 has undergone a rigorous refurbishment process.

Whether you buy a new or used Fanuc M 900iA/600 robot arm, it is sure to add to a lean manufacturing environment.

Specs

Reach
2832 mm
Axes
6
Repeatability
0.4 mm
Mass
2800 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
80 °/s (1.4 rad/s)
J2
80 °/s (1.4 rad/s)
J3
80 °/s (1.4 rad/s)
J4
100 °/s (1.75 rad/s)
J5
100 °/s (1.75 rad/s)
J6
160 °/s (2.79 rad/s)

Motion Range

J1
±180°
J2
±77°
J3
±80°
J4
±360°
J5
±122°
J6
±360°
