Fanuc R-2000iC/165F

Fanuc Fanuc R Series Robot

Request a Quote 1/4

Contact us:

Details

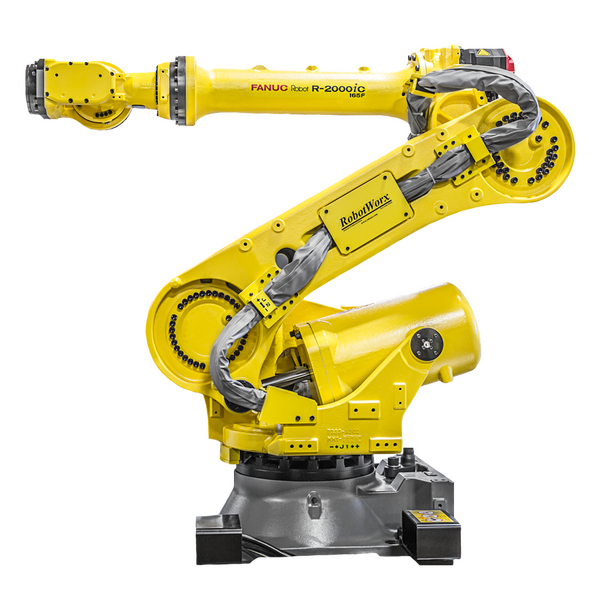

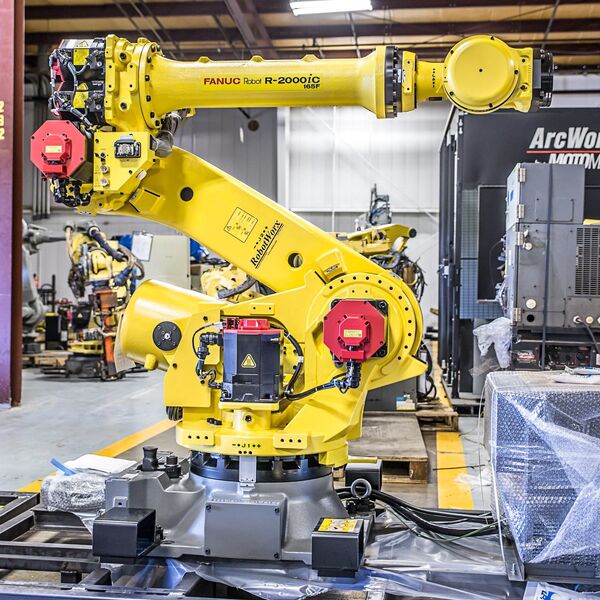

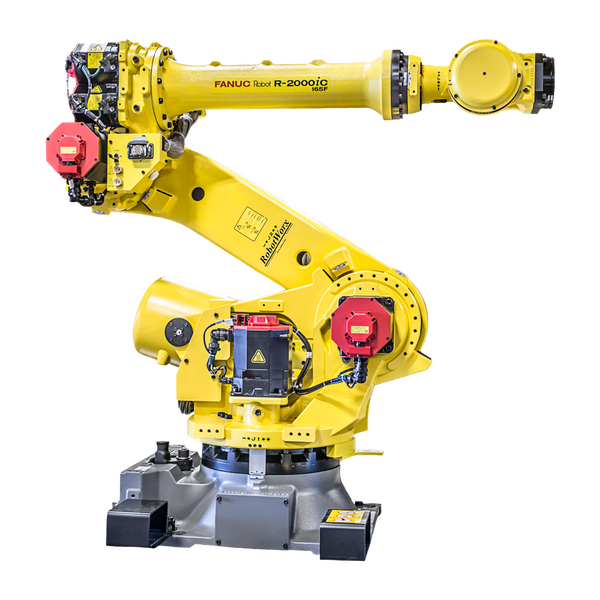

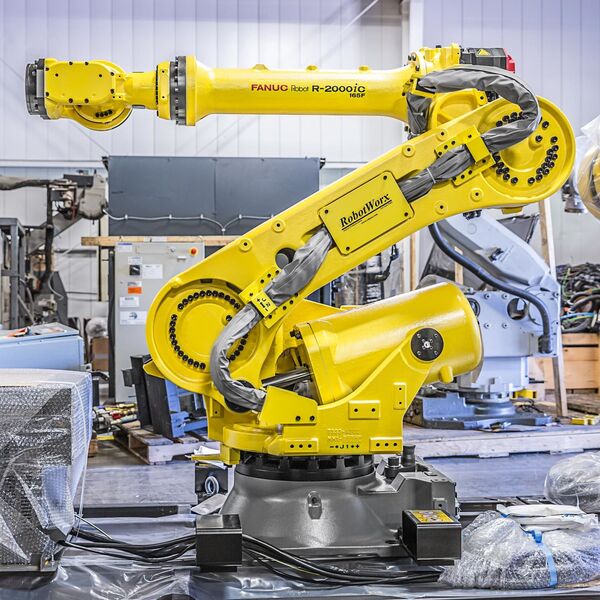

The Fanuc R-2000iC/165F is an advanced, 6-axis, multi-purpose robot that can handle a 165 kg payload. The R-2000iC/165F is a flexible robot, making it ideal for a variety of applications, ranging from spot welding to material handling. It has an incredibly capable thin wrist that delivers excellent cycle times, making it perfect for nimble spot welding. Also, the Fanuc R-2000iC/165F has been thoughtfully designed to maximize use of work space and be in closer proximity to other robots.

Overall, the diverse Fanuc R-2000iC/165F comes equipped with the new R-30iB controller and will be a great addition to your factory.

Specs

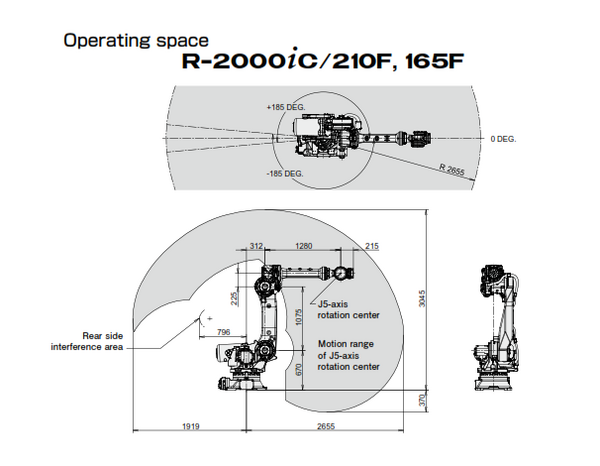

Reach
2655 mm
Axes
6
Repeatability
0.2 mm
Mass
1090 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
130 °/s (2.27 rad/s)
J2
115 °/s (2.01 rad/s)
J3
125 °/s (2.18 rad/s)
J4
180 °/s (3.14 rad/s)
J5
180 °/s (3.14 rad/s)
J6
260 °/s (4.54 rad/s)

Motion Range

J1
±370°
J2
±136°
J3
±312°
J4
±720°
J5
±250°
J6
±720°
