Fanuc R-2000iC/165R

Fanuc Fanuc R Series Robot

Request a Quote 1/4

Contact us:

Details

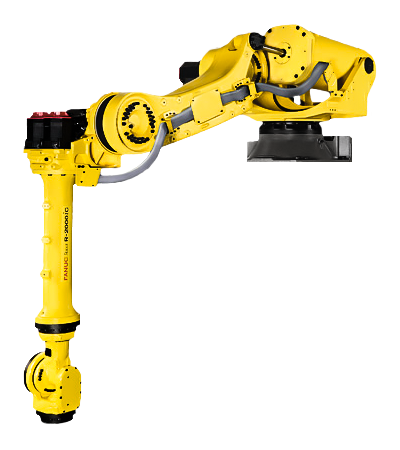

The Fanuc R-2000iC/165R is the advanced rack mounted robot, capable of handling up to 165kg. The Fanuc R2000iC/165R robots comes equipped with the R-30iB controller and has a reach up to 3095mm. The robot is electric servo driven with a +/-0.2mm repeatability. The rack mounted Fanuc R-2000iC/165R will take your manufacturing process to the next level.

Specs

Reach
3095 mm
Axes
6
Repeatability
0.2 mm
Mass
1370 kg
Structure
Articulated
Mounting
Rack

Motion Speed

J1
115 °/s (2.01 rad/s)
J2
110 °/s (1.92 rad/s)
J3
125 °/s (2.18 rad/s)
J4
180 °/s (3.14 rad/s)
J5
180 °/s (3.14 rad/s)
J6
260 °/s (4.54 rad/s)

Motion Range

J1
±370°
J2
±200°
J3
±375°
J4
±720°
J5
±250°
J6
±720°
