Fanuc R-2000iC/210R

Fanuc Fanuc R Series Robot

Request a Quote 1/4

Contact us:

Details

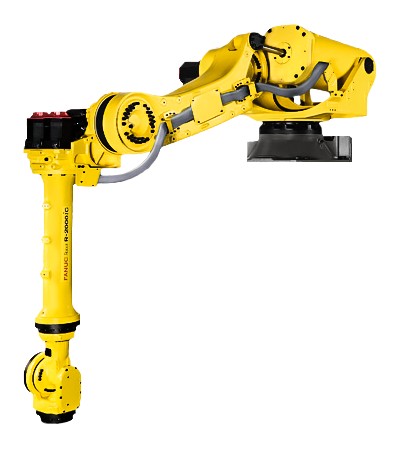

The advanced Fanuc R-2000iC/210R is a rack mounted robot capable of handling 210kgs! This robot comes equipped with the new R-30iB controller and has a reach up to 3095mm. The R2000iC/210R can perform a variety of applications ranging from spot welding to assembly. The rack mount allows you to save floor space. If you are looking for an high performance robot with a heavy payload capacity, the Fanuc R 2000iC/210R is just what you need.

Specs

Reach
3095 mm
Axes
6
Repeatability
0.2 mm
Mass
1370 kg
Structure
Articulated
Mounting
Rack

Motion Speed

J1
105 °/s (1.83 rad/s)
J2
100 °/s (1.75 rad/s)
J3
110 °/s (1.92 rad/s)
J4
140 °/s (2.44 rad/s)
J5
140 °/s (2.44 rad/s)
J6
220 °/s (3.84 rad/s)

Motion Range

J1
±370°
J2
±200°
J3
±375°
J4
±720°
J5
±250°
J6
±720°
