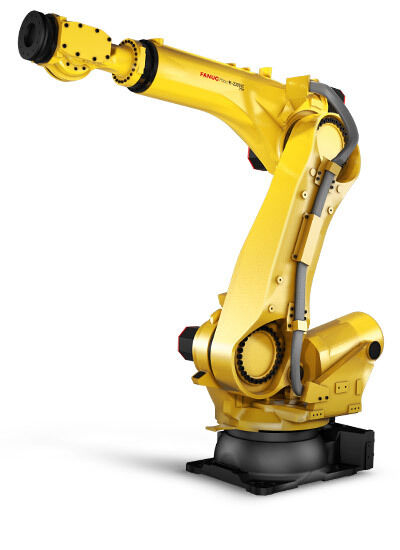

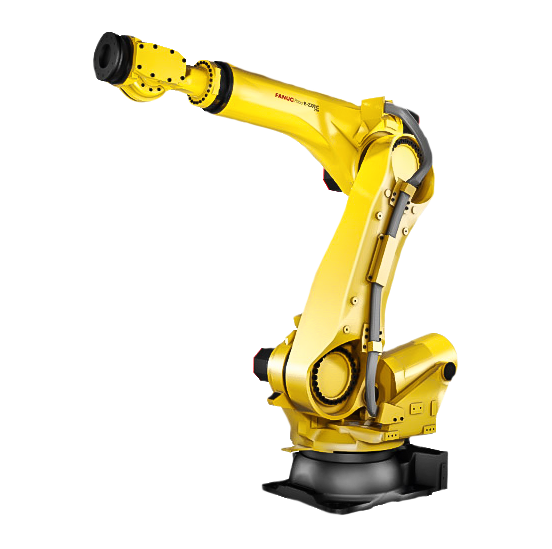

Fanuc R-2000iC/270F

Fanuc Fanuc R Series Robot

Request a Quote 1/4

Contact us:

Details

With a payload of 270 kg, the Fanuc R-2000iC/270F R-30iB is one of the strongest robots in its class. The R2000iC/270F is capable of handling a variety of heavy payload applications, including spot welding and palletizing. The Fanuc R-2000iC/270F comes equipped with the R30iB controller. If you are looking for a versatile, dependable, strong robot, the Fanuc R 2000iC/270F is an excellent choice.

Specs

Reach
2655 mm
Axes
6
Repeatability
0.3 mm
Mass
1320 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
105 °/s (1.83 rad/s)
J2
90 °/s (1.57 rad/s)
J3
85 °/s (1.48 rad/s)
J4
120 °/s (2.09 rad/s)
J5
120 °/s (2.09 rad/s)
J6
200 °/s (3.49 rad/s)

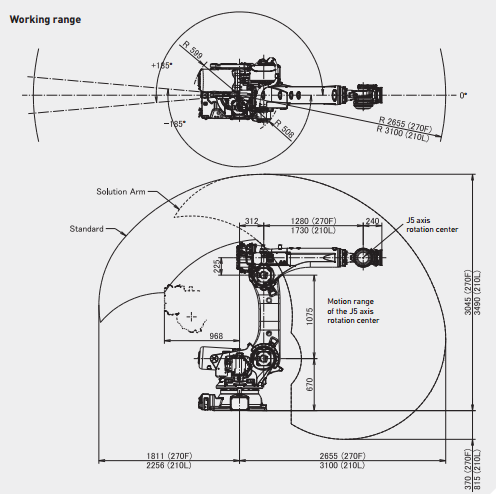

Motion Range

J1
±370°
J2
±136°
J3
±312°
J4
±720°
J5
±250°
J6
±720°
