Details

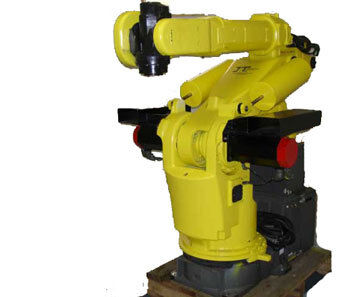

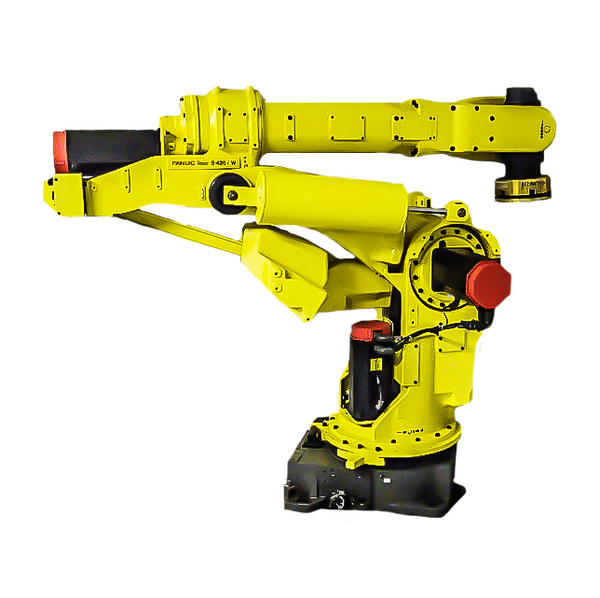

The Fanuc S-420iW is a heavy duty industrial robot. With a large work envelope and high payload capacity, the S420iW RJ2 is ideal for applications such as automotive spot welding and material handling. The Fanuc S 420iW RJ2 features an increased payload capacity for maximum flexibility.

Robots.com also offers a wide range of reconditioned robots, such as the used Fanuc S-420iW. All the used S0420iW are brought back to mint condition by the experts at Robots.com and their rigorous refurbishment process.

Whether you buy a new or used Fanuc S-420iW, the high motion speeds will reduce time between welds and the low mass arm design allows high speed positioning from the s420iW.

Specs

Reach
2850 mm
Axes
6
Repeatability
0.4 mm
Mass
1600 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
90 °/s (1.57 rad/s)
J2
100 °/s (1.75 rad/s)
J3
75 °/s (1.31 rad/s)
J4
140 °/s (2.44 rad/s)
J5
110 °/s (1.92 rad/s)
J6
140 °/s (2.44 rad/s)

Motion Range

J1
±180°
J2
+72° - 70°
J3
+30° - 105°
J4
±300°
J5
±130°
J6
±360°
