Details

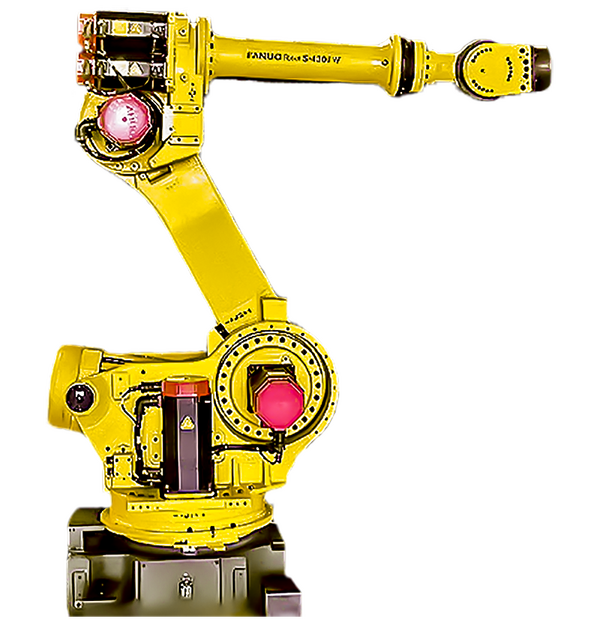

The Fanuc S-430iW is a six-axis industrial robot capable of handling heavy assignments. Designed for the automotive industry, the S-430iW RJ3 robot integrates well into general, part transfer, material removal, dispensing, and machine loading applications.

A compact design conserves floorspace while allowing the S-430iW to have a lengthy reach across the work area. A slim arm and wrist makes parts accessible and fast speeds reduce cycle times. The Fanuc S-430iw RJ3 features the Fanuc Servo Drive System, resulting in fast point-to-point positioning.

Robots.com also offers a wide range of reconditioning robots, including the used Fanuc S-430iW. The used S-430iW goes through a very meticulous reconditioning process, returning it to mint condition.

Overall, the long reach and slim design of the new and used S-430iW allows manufacturers to have more flexibility with their layout design, making it easier to plan around other systems. Get yours through Robots.com today!

Specs

Reach
2643 mm
Axes
6
Repeatability
0.3 mm
Mass
1300 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
105 °/s (1.83 rad/s)
J2
105 °/s (1.83 rad/s)
J3
105 °/s (1.83 rad/s)
J4
130 °/s (2.27 rad/s)
J5
130 °/s (2.27 rad/s)
J6
210 °/s (3.67 rad/s)

Motion Range

J1
±180°
J2
+75° - 59°
J3
+229° - 133°
J4
±360°
J5
±125°
J6
±360°
