Fanuc S-900iB/220L

Fanuc Fanuc S Robot Series

Request a Quote 1/4

Contact us:
Reach
Reach
3033 mm
Axes
Axes
6

Details

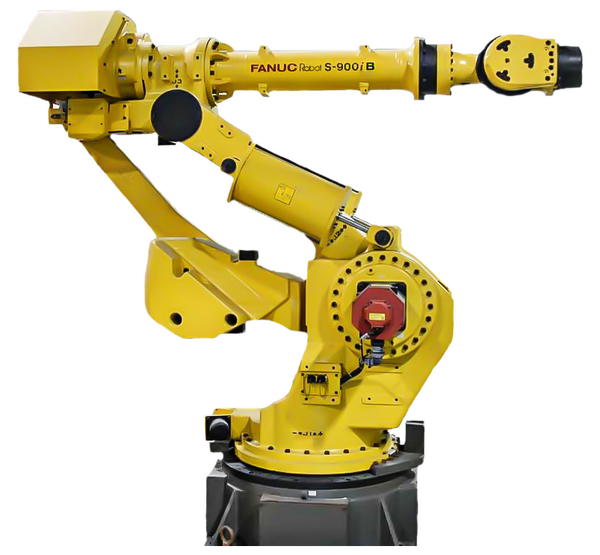

The Fanuc S-900iB/220L RJ3iB boasts a long reach and high payload, making it the perfect robot for medium to large workpieces.

The S-900iB/220L has the versatility to perform a variety of different applications, including material handling, palletizing, part transfer, resistance welding, and spot welding. Applications can be completed faster and more accurately than any manual application.

Robots.com also offers a variety of reconditioned robots, such as the used Fanuc S-900iB/200L. The used S-900iB/200L has undergone Robots.com' intense refurbishment process, bringing all refurbished robots back to mint condition.

If you are looking for a heavy duty robot, the new or used S-900iB RJ3iB is a durable, flexible choice.

Specs

Reach
3033 mm
Axes
6
Repeatability
0.5 mm
Mass
2080 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
95 °/s (1.66 rad/s)
J2
95 °/s (1.66 rad/s)
J3
95 °/s (1.66 rad/s)
J4
110 °/s (1.92 rad/s)
J5
110 °/s (1.92 rad/s)
J6
165 °/s (2.88 rad/s)

Motion Range

J1
±150°
J2
+65° - 50°
J3
+30° - 115°
J4
±360°
J5
±125°
J6
±360°
