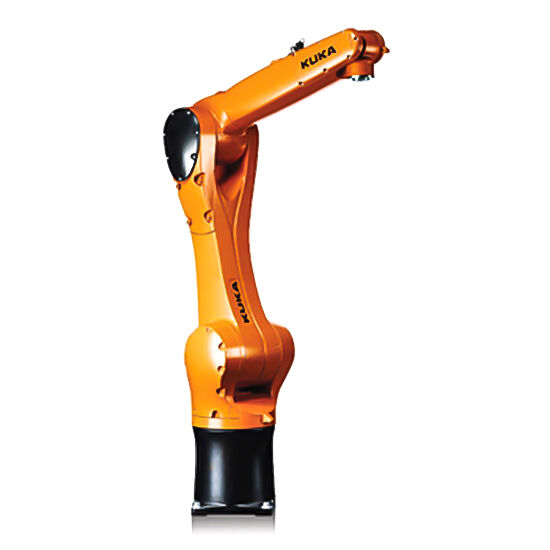

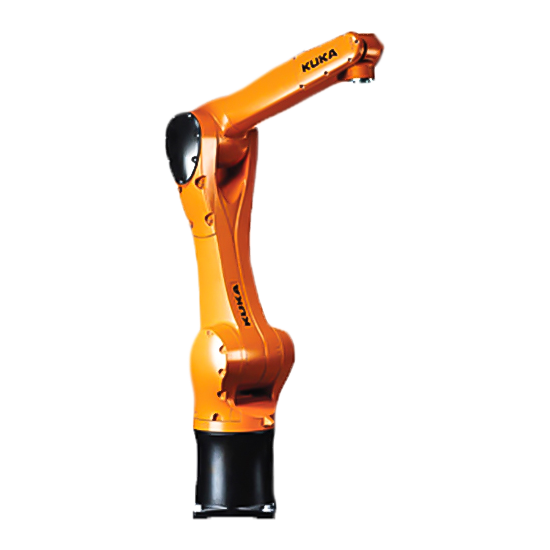

KUKA KR 10 R1100 Sixx

KUKA KUKA Small Robot Series

Request a Quote 1/4

Contact us:

Details

High speeds and incredible precision are huge attributes of the KR 10 R1100 Sixx. Tackling a variety of applications, this robot is very versatile with floor, ceiling, and wall mounting options. It has an IP54 protection rating, payload capacity of 10 kg, and 1101 mm reach.

If your job requires a robot that can withstand harsh conditions, then consider the KR 10 R1100 Sixx WP model. This robot's plastic parts are replaced by stable stainless steel covers. There are additional seals on the interior and surface treatments that add a level of resistances and strength. Additionally, it has a higher protection rating; IP67.

Both robots will be paired with the KR C4 Compact controller.

Specs

Reach
1101 mm
Axes
6
Repeatability
0.03 mm
Mass
54 kg
Structure
Articulated
Mounting
Floor, Inverted, Angle
