KUKA KR 100
Contact us:
Reach
2400 mm
Axes
6
Reach
2400 mm
Axes
6
Details

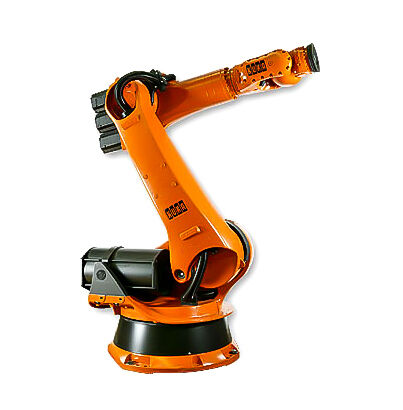

The Kuka KR 100 comp brings high level sophistication to the toughest application. With light-weight frame components and versatility, the KR 100 KR C2 robot can handle many tasks such as spot welding, plasma cutting, and machine tending.
This robot offers a user-friendly PC interface for easy programming and operation. The KR 100 KR C2 modular construction allows for quick changes to tooling, payloads, and reach.
Specs
Reach
2400 mm
Axes
6
Repeatability
0.15 mm
Mass
1155 kg
Structure
Articulated
Mounting
Floor
Motion Speed
J1
107 °/s (1.87 rad/s)
J2
107 °/s (1.87 rad/s)
J3
115 °/s (2.01 rad/s)
J4
173 °/s (3.02 rad/s)
J5
186 °/s (3.25 rad/s)
J6
265 °/s (4.63 rad/s)
Motion Range
J1
±185°
J3
+148° - 120°
J4
±350°
J5
±120°
J6
±350°
