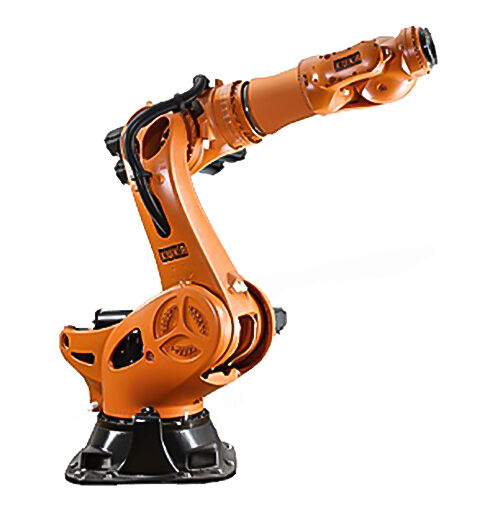

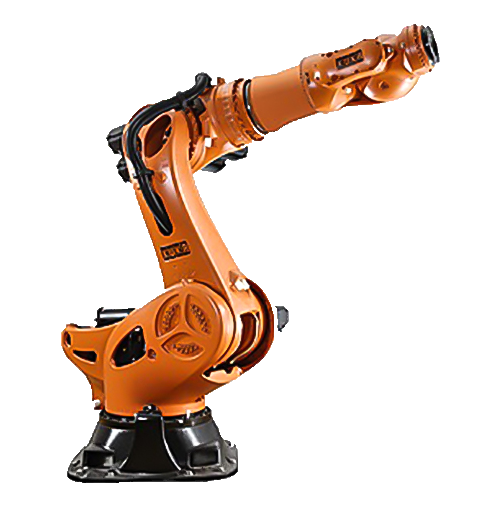

KUKA KR 1000 L750 Titan

KUKA KUKA Heavy Duty Robot Series

Request a Quote 1/4

Contact us:

Details

The KUKA KR 1000 L750 Titan is the perfect choice for a variety of heavy duty applications to include assembly, handling, picking, loading, or spot welding. It has a huge payload of 750 kg and a long 3600 mm reach. The KR 1000 L750 Titan can efficiently and precisely handle items such as engine blocks, stone, glass, steel sections, pieces for ships or aircraft, marble blocks, precast concrete parts, and much more!

This robot is ready to handle all of your big, heavy duty jobs and complete them with ease. It will be paired with the KR C4 controller and will only bring an increased wait to efficiency on your production floor.

Specs

Reach
3601 mm
Axes
6
Repeatability
0.1 mm
Mass
4740 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
58 °/s (1.01 rad/s)
J2
50 °/s (0.87 rad/s)
J3
50 °/s (0.87 rad/s)
J4
60 °/s (1.05 rad/s)
J5
60 °/s (1.05 rad/s)
J6
72 °/s (1.26 rad/s)

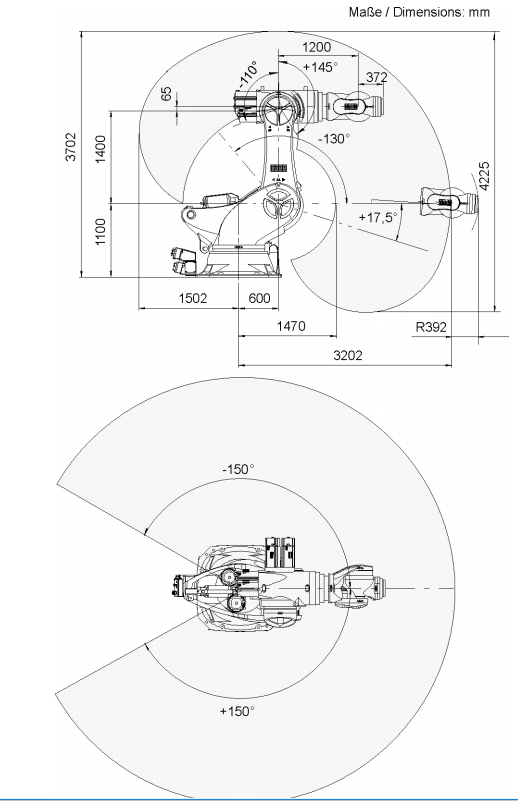

Motion Range

J1
±150°
J2
+17.5° - 130°
J3
+145° - 110°
J4
±350°
J5
±118°
J6
±350°
