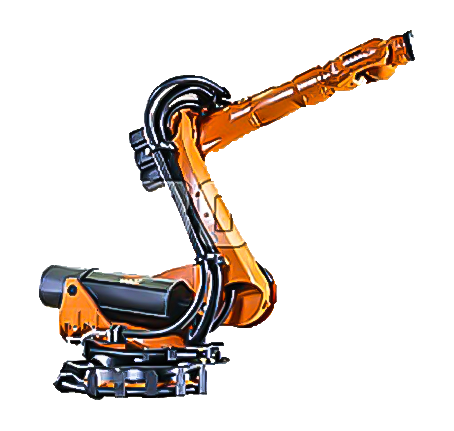

KUKA KR 120 P
Contact us:
Reach
3500 mm
Axes
6
Reach
3500 mm
Axes
6
Details
Machine tending and material handling applications are done with ease by the KUKA KR 120 Pindustrial robot. With its powerful reach and payload capacity, the KR 120 P KR C2 gets the job done with precision and speed.
This six-axis articulated robot is a member of the press-to-press series and best suited for loading and unloading applications. The KR 120 P KR C2 mounts on the floor and offers accurate, effective movement.
With a lithe, strong frame, and a user-friendly interface, the KR 120 P is an asset for any manufacturing facility.
Specs
Reach
3500 mm
Axes
6
Repeatability
0.2 mm
Mass
1500 kg
Structure
Articulated
Mounting
Floor
Motion Speed
J1
102 °/s (1.78 rad/s)
J2
96 °/s (1.68 rad/s)
J3
83 °/s (1.45 rad/s)
J4
121 °/s (2.11 rad/s)
J5
124 °/s (2.16 rad/s)
J6
184 °/s (3.21 rad/s)
Motion Range
J1
±185°
J2
+70° - 120°
J3
+155° - 119°
J4
±350°
J5
±125°
J6
±350°
