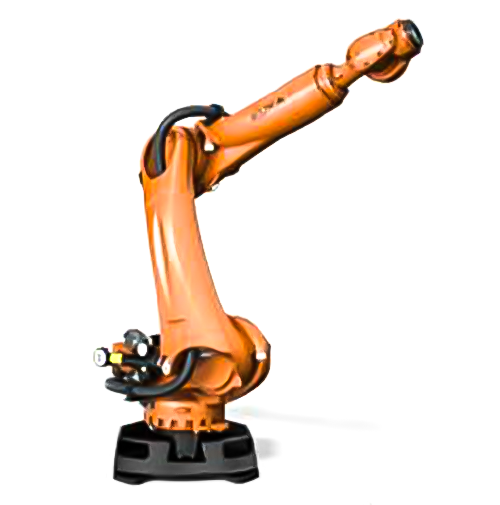

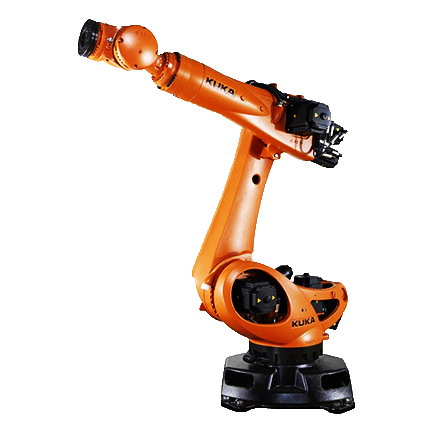

KUKA KR 120 R2900 Extra

KUKA KUKA High Payload Robot Series

Request a Quote 1/4

Contact us:

Details

Look no further than the KUKA KR 120 R2900 Extra for an affordable robot that can provide maximum versatility and flexibility. Also known as the KR QUANTEC, this robust robot has a sleek, space-saving design to enable an easy integration onto already existing cell layouts.

The designers of the KR 120 R2900 were able to reach higher standards for an increase in precision, performance, energy, and availability. They did this by reducing the moving mass of all-rounders.

Additionally, when comparing the KR QUANTEC with older models, it provides an additional 20% increase of payload (at 120 kg) and and longer reach of 2,900 mm. Your application will be nothing but grateful for the extra help of the KR 120 R2900 extra paired with the KR C4 controller.

Specs

Reach
2896 mm
Axes
6
Repeatability
0.06 mm
Mass
1084 kg
Structure
Articulated
Mounting
Floor, Inverted

Motion Speed

J1
123 °/s (2.15 rad/s)
J2
115 °/s (2.01 rad/s)
J3
120 °/s (2.09 rad/s)
J4
292 °/s (5.1 rad/s)
J5
258 °/s (4.5 rad/s)
J6
284 °/s (4.96 rad/s)

Motion Range

J1
±185°
J2
+140° - 5°
J3
+120° - 155°
J4
±350°
J5
±125°
J6
±350°
