KUKA KR 150 K
Contact us:
Reach
3500 mm
Axes
6
Reach
3500 mm
Axes
6
Details

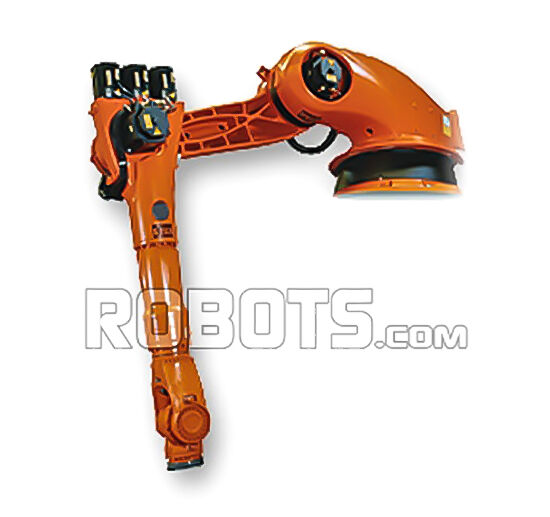

The KUKA KR 150 K is a six axes, 110 kg payload, shelf-mounted robot. The KR 150 K KR C2 is ideal for a variety of applications such as spot welding, material handling, machine tending, and plasma cutting.
As a robust shelf mounted robot, the KUKA KR 150 K can be integrated in the role of top loader in a production line, giving it the ability to load and unload, as well as performing finishing applications -- all in one streamlined operation.
This level of versatility gives manufacturers many different options when they decide to invest in the KUKA KR 150 K.
Specs
Reach
3500 mm
Axes
6
Repeatability
0.2 mm
Mass
1465 kg
Structure
Articulated
Mounting
Floor
Motion Speed
J1
96 °/s (1.68 rad/s)
J2
96 °/s (1.68 rad/s)
J3
95 °/s (1.66 rad/s)
J4
171 °/s (2.98 rad/s)
J5
171 °/s (2.98 rad/s)
J6
238 °/s (4.15 rad/s)
Motion Range
J1
±185°
J2
+70° - 120°
J3
+155° - 119°
J4
±350°
J5
±125°
J6
±350°
