KUKA KR 16 Arc HW
Contact us:
Reach
1636 mm
Axes
6
Reach
1636 mm
Axes
6
Details

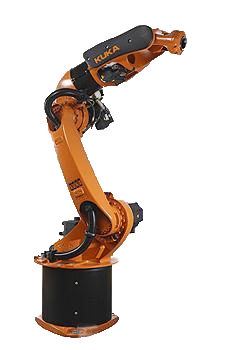

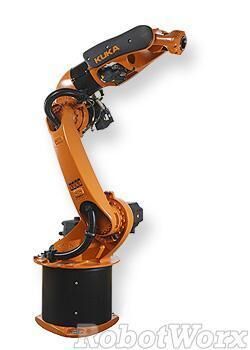

The KUKA KR 16 Arc HW is a hollow-wrist robot arc welder that offers customers high reliability and repeatability, while improving productivity. The KR 16 Arc HW KR C2 will produce high-quality welds to produce a better overall product for your customers.
With the internal routing of the KR 16 Arc's cables, wear and tear are kept to a minimum, protecting your investment and keeping maintenance costs low.
Specs
Reach
1636 mm
Axes
6
Repeatability
0.05 mm
Mass
245 kg
Structure
Articulated
Mounting
Floor, Inverted
Motion Speed
J1
200 °/s (3.49 rad/s)
J2
200 °/s (3.49 rad/s)
J3
195 °/s (3.4 rad/s)
J4
370 °/s (6.46 rad/s)
J5
310 °/s (5.41 rad/s)

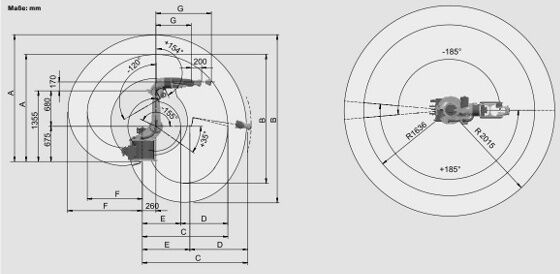

Motion Range
J1
+185° - 185°
J2
+35° - 155°
J3
+154° - 120°
J4
+165° - 165°
J5
+130° - 130°
