KUKA KR 240
Contact us:
Reach
2700 mm
Axes
6
Reach
2700 mm
Axes
6
Details

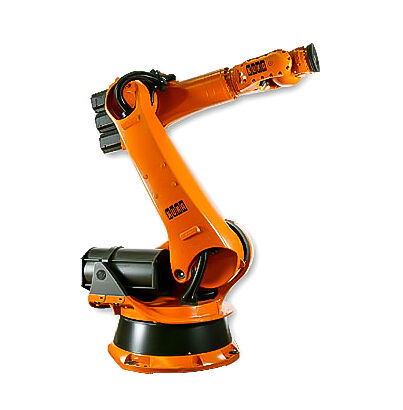

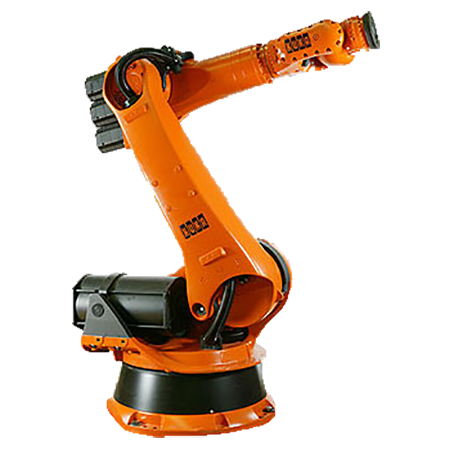

The KUKA KR 240 features a large load-bearing capacity, enabling it to carry heavy tooling and parts quickly with smooth motions. The KR 240 KR C2 robot is ideal for cost-effective manufacturing concepts. The long 2700 mm reach of the KR 240 KR C2 arm provides it with enough versatility to handle complex tasks. The series 2000 KUKA arms can be easily upgraded, allowing for longer use and more reliability.
Specs
Reach
2700 mm
Axes
6
Repeatability
0.12 mm
Mass
1267 kg
Structure
Articulated
Mounting
Floor
Motion Speed
J1
86 °/s (1.5 rad/s)
J2
80 °/s (1.4 rad/s)
J3
79 °/s (1.38 rad/s)
J4
100 °/s (1.75 rad/s)
J5
110 °/s (1.92 rad/s)
J6
184 °/s (3.21 rad/s)
Motion Range
J1
±185°
J3
+155° - 119°
J4
±350°
J5
±125°
J6
±350°
