Details

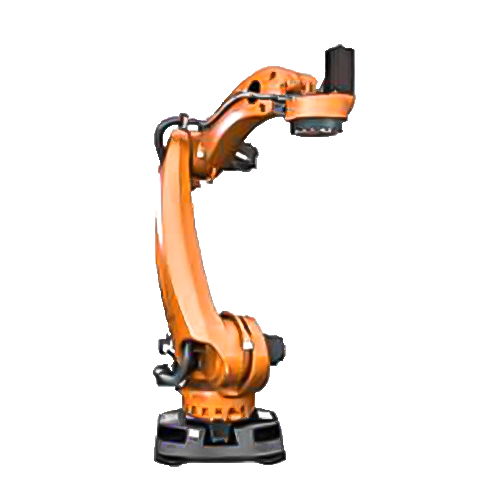

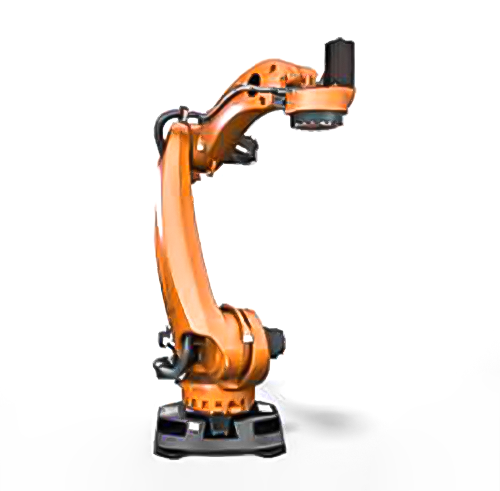

The KR 240 R3200 PA (KR QUANTEC) is a 5-axis robot that truly impresses with its speed and optimal acceleration values. It has a reach of 3195 mm and can handle a payload of 240 kg; it is ready to tackle a variety of applications such as material handling, order picking, palletizing, and part transfer.

The KR QUANTEC's design was thoughtfully created to ensure the best possible acceleration values, even at the very maximum load. Paired with the KR C4 controller, this robot is sure to bring your production line many cost savings and increase the overall product quality.

Specs

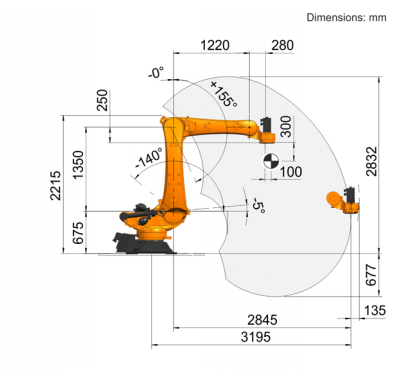

Reach
3195 mm
Axes
5
Repeatability
0.06 mm
Mass
1103 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
105 °/s (1.83 rad/s)
J2
101 °/s (1.76 rad/s)
J3
107 °/s (1.87 rad/s)
J4
173 °/s (3.02 rad/s)

Motion Range

J1
±185°
J2
+140° - 5°
J4
±350°
