KUKA KR 30 L16
Contact us:
Reach
3102 mm
Axes
6
Reach
3102 mm
Axes
6
Details

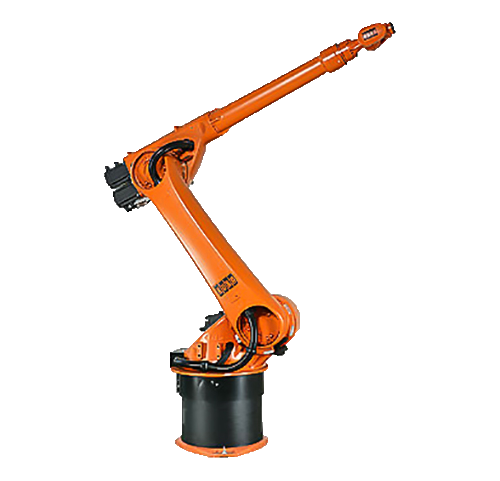

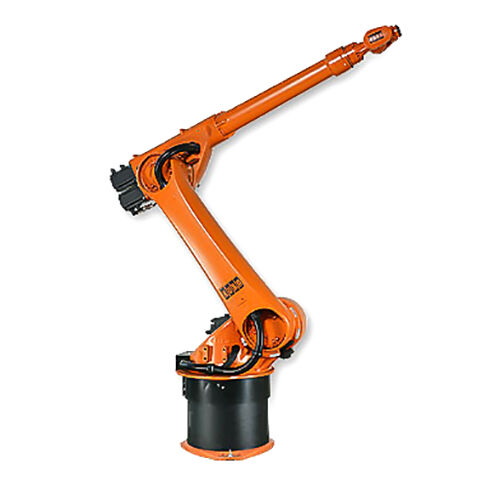

The Kuka KR 30 L16 offers a long reach of 3102 mm and the ability to handle a payload of up to 16 kg. With the ability to be either floor or ceiling mounted, the KR 30 L16 KR C2 can easily be integrated into any shop.
Specs
Reach
3102 mm
Axes
6
Repeatability
0.07 mm
Mass
700 kg
Structure
Articulated
Mounting
Floor, Inverted
Motion Speed
J1
100 °/s (1.75 rad/s)
J2
80 °/s (1.4 rad/s)
J3
80 °/s (1.4 rad/s)
J4
230 °/s (4.01 rad/s)
J5
165 °/s (2.88 rad/s)
J6
249 °/s (4.35 rad/s)
Motion Range
J1
±130°
J2
+35° - 135°
J3
+158° - 120°
J4
±350°
J5
±130°
J6
±350°
