KUKA KR 300-2 PA
Contact us:
Reach
3150 mm
Axes
5
Reach
3150 mm
Axes
5
Details

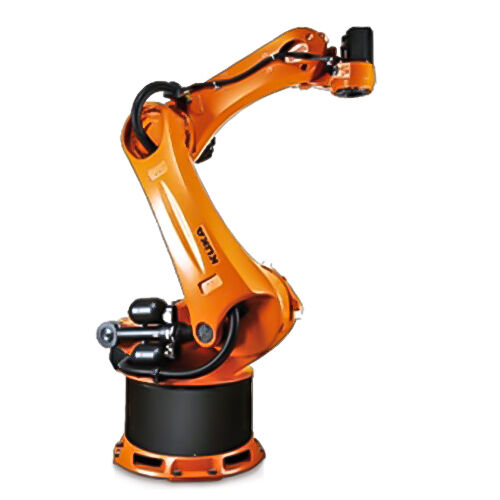

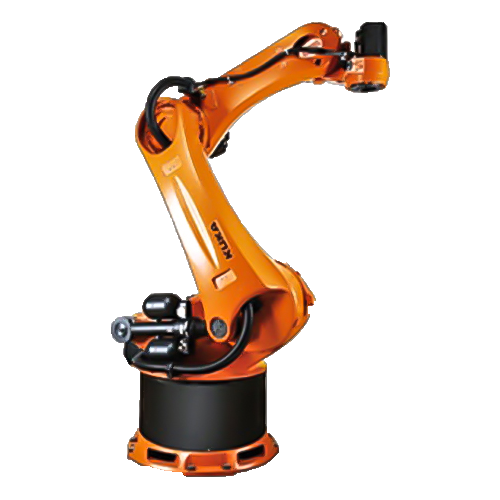

Powerful and robust, yet light and fast, the KUKA KR 300-2 PA palletizing robot will not disappoint. KUKA has designed this robot specifically for high-speed tasks with heavy payloads, up to 300 kg! It has 5 axes, a 3150 mm reach, and is paired with the KR C4 controller.
The KUKA KR 300-2 PA is part of the world's most versatile range of palletzing robots. It is ready to conquer your next palletizing job with excellent speeds and precision.
Specs
Reach
3150 mm
Axes
5
Repeatability
0.08 mm
Mass
2150 kg
Structure
Articulated
Mounting
Floor
Motion Speed
J1
97.5 °/s (1.7 rad/s)
J2
91 °/s (1.59 rad/s)
J3
89 °/s (1.55 rad/s)
J4
177 °/s (3.09 rad/s)

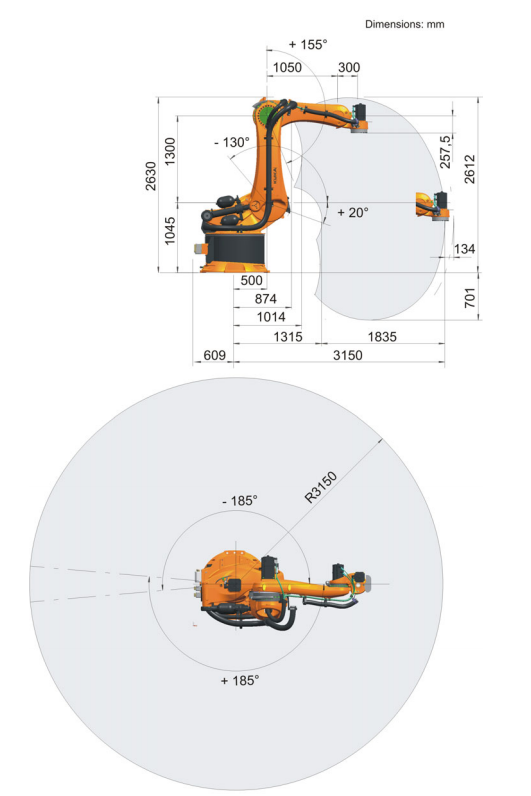

Motion Range
J1
±185°
J2
+20° - 130°
J3
±155°
J4
±350°
