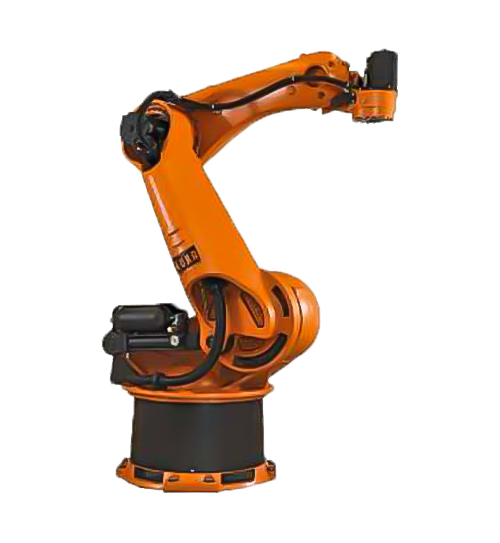

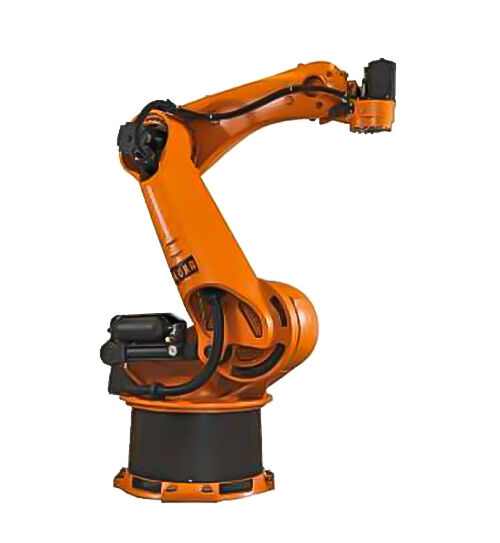

The KUKA KR 300 PA robot can drastically increase your palletizing output. It is well-suited for high speed tasks with high payloads. The result is shorter cycle times and increased throughput.

The KR 300 PA KR C2 can mount either on a pedestal or on the floor. As a result, the work envelope can be adjusted to match the application needs while increasing flexibility. A hollow wrist opening allows the energy supply to be routed in the protected interior. Features like this lower the maintenance needs of the KR 300 PA KR C2.

Specs

Reach
3150 mm
Axes
5
Repeatability
0.15 mm
Mass
2330 kg
Structure
Articulated
Mounting
Floor

Motion Speed

J1
75 °/s (1.31 rad/s)
J2
90 °/s (1.57 rad/s)
J3
93 °/s (1.62 rad/s)
J4
177 °/s (3.09 rad/s)

Motion Range

J1
±185°
J2
+130° - 20°
J4
±350°
