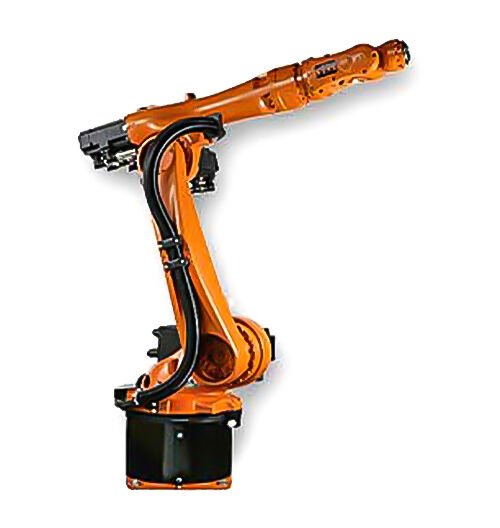

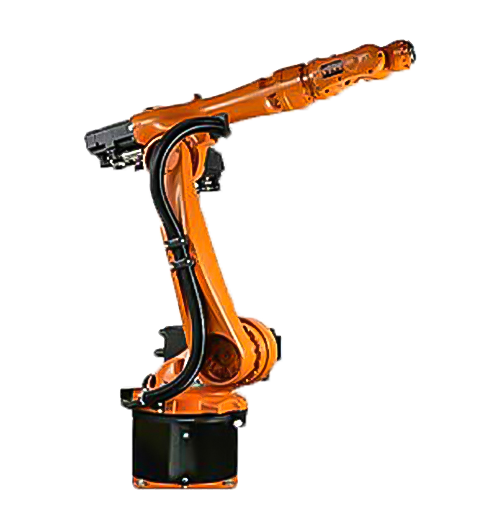

KUKA KR 5 Arc
Contact us:
Reach
1412 mm
Axes
6
Reach
1412 mm
Axes
6
Details
The compact dimensions of the KUKA KR 5 Arc robot reduce its footprint. The low weight of the Kuka KR 5 KR C2 Arc simplifies transportation and installation. This productive robot uses an electronic measuring tool for automated mastering. This ensures fast availability, even after malfunctions.
The KR 5 KR C2 Arc uses a standard robot wrist, allowing it to be easily used for applications other than arc welding. It is also able to be mounted on a linear plane for use on larger workpieces
Specs
Reach
1412 mm
Axes
6
Repeatability
0.1 mm
Mass
127 kg
Structure
Articulated
Mounting
Floor, Inverted
Motion Speed
J1
154 °/s (2.69 rad/s)
J2
154 °/s (2.69 rad/s)
J3
228 °/s (3.98 rad/s)
J4
343 °/s (5.99 rad/s)
J5
384 °/s (6.7 rad/s)
J6
721 °/s (12.58 rad/s)
Motion Range
J1
±155°
J2
+65° - 180°
J3
+158° - 15°
J4
±350°
J5
±130°
J6
±350°
