KUKA KR 500
Contact us:
Reach
2836 mm
Axes
6
Reach
2836 mm
Axes
6
Details

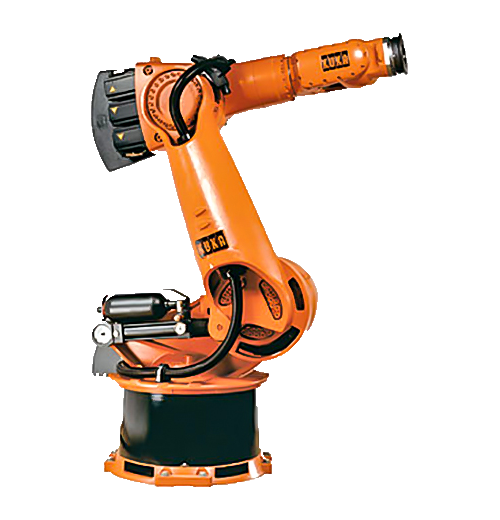

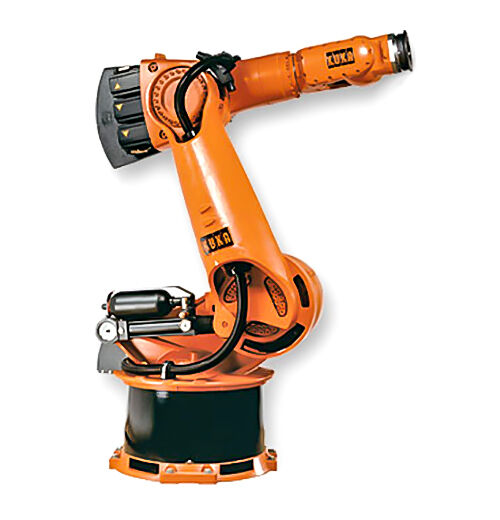

The KUKA KR 500 robot arm is a heavy-duty industrial robot arm with a high payload and large work envelope. The Kuka heavy duty KR 500 KR C2 has enhanced features such as an extension of the reference load center distance, integrated energy supply, and a more efficient use of floorspace.
The KUKA KR 500 KR C2 is available as a ceiling-mounted arm, cleanroom arm, foundry arm, and ceiling-mounted foundry arm.
Specs
Reach
2836 mm
Axes
6
Repeatability
0.15 mm
Mass
2350 kg
Structure
Articulated
Mounting
Floor, Inverted
Motion Speed
J1
69 °/s (1.2 rad/s)
J2
69 °/s (1.2 rad/s)
J3
69 °/s (1.2 rad/s)
J4
77 °/s (1.34 rad/s)
J5
76 °/s (1.33 rad/s)
J6
120 °/s (2.09 rad/s)
Motion Range
J1
±185°
J2
+110° - 40°
J3
+60° - 184°
J4
±350°
J5
±118°
J6
±350°
