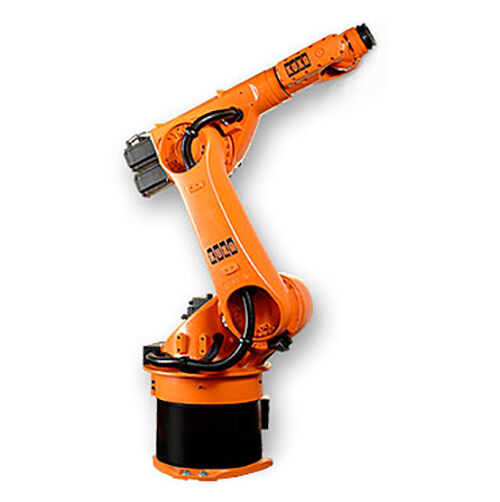

KUKA KR 60-3
Contact us:
Reach
2033 mm
Axes
6
Reach
2033 mm
Axes
6
Details
The diverse KUKA KR 60-3 is flexible enough to handle several different material handling and removal applications, saving the manufacturer money on equipment.
The KR 60-3 KR C4 has two variants: the KR 60-3 CR for clean-room applications and the KR 60-3 F for foundry processes.
With so much versatility in one machine, the KR 60-3 KR C4 is one of the most cost effective robots on the market today.
Specs
Reach
2033 mm
Axes
6
Repeatability
0.06 mm
Mass
665 kg
Structure
Articulated
Mounting
Floor, Inverted
Motion Speed
J1
128 °/s (2.23 rad/s)
J2
102 °/s (1.78 rad/s)
J3
128 °/s (2.23 rad/s)
J4
260 °/s (4.54 rad/s)
J5
245 °/s (4.28 rad/s)
J6
322 °/s (5.62 rad/s)

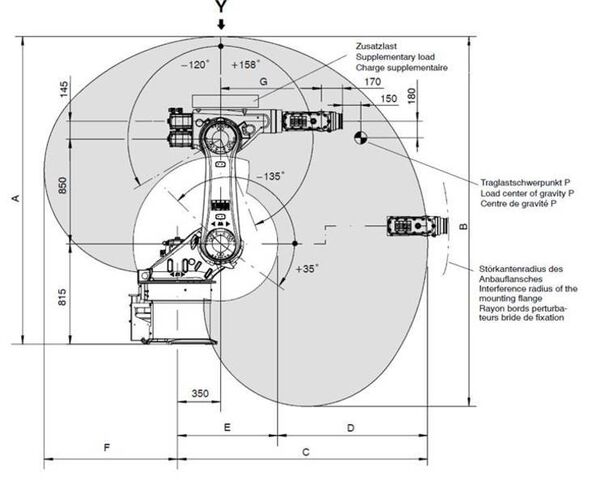

Motion Range
J1
+185° - 185°
J2
+35° - 135°
J3
+158° - 120°
J4
+350° - 350°
J5
+119° - 119°
J6
+350° - 350°
