KUKA KR 60 KS
Contact us:
Reach
2233 mm
Axes
6
Reach
2233 mm
Axes
6
Details

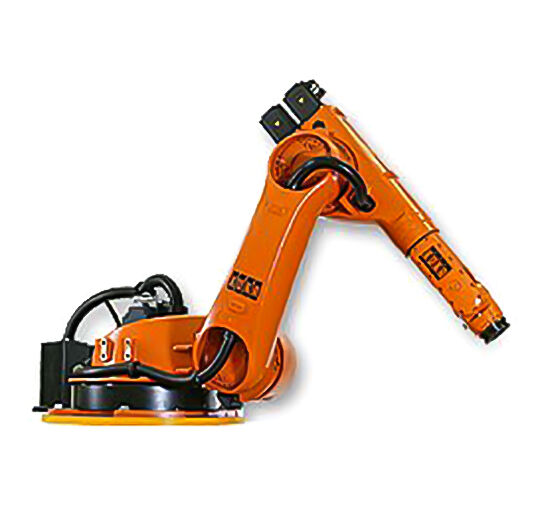

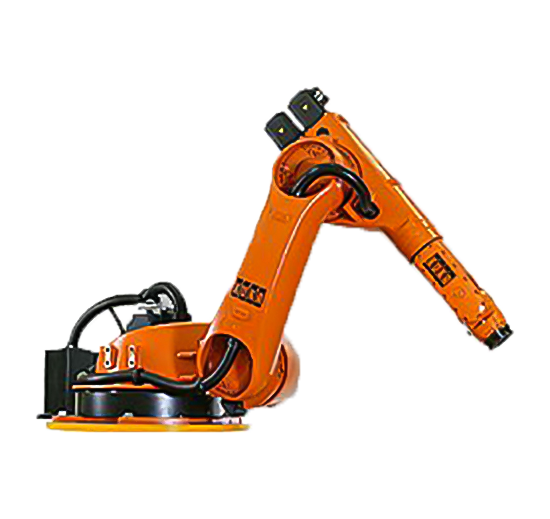

The Kuka KR 60 KS is designed to work from a shelf and handle medium payloads. Compact and versatile, this robot has unique features.
Its mounting position creates a wide work envelope. The KR 60 KS KR C2 also has a lower base frame, making it well-suited for loading applications. Never limited to one application, the KR 60 KS robot easily adjusts for anything from coating to palletizing and welding processes.
Specs
Reach
2233 mm
Axes
6
Repeatability
0.2 mm
Mass
600 kg
Structure
Articulated
Mounting
Floor
Motion Speed
J1
128 °/s (2.23 rad/s)
J2
102 °/s (1.78 rad/s)
J3
128 °/s (2.23 rad/s)
J4
260 °/s (4.54 rad/s)
J5
245 °/s (4.28 rad/s)
J6
322 °/s (5.62 rad/s)
Motion Range
J1
±150°
J2
+75° - 105°
J3
+158° - 120°
J4
±350°
J5
±119°
J6
±350°
