KUKA KR 60 L45 KS
Contact us:
Reach
2430 mm
Axes
6
Reach
2430 mm
Axes
6
Details

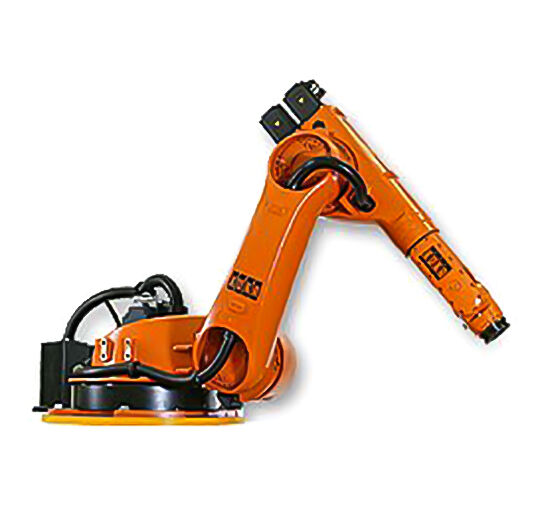

The KUKA KR 60 L45 KS robot is a shelf mounted robot. The KR 60 L45 KS KR C2 is equipped with a lower payload and a longer reach. Six axes, 45 kg payload capacity, and a reach of 2430 mm make the KR 60 L45 KS KR C2 ideal for material handling task.
Specs
Reach
2430 mm
Axes
6
Repeatability
0.25 mm
Mass
610 kg
Structure
Articulated
Mounting
Floor
Motion Speed
J1
138 °/s (2.41 rad/s)
J2
130 °/s (2.27 rad/s)
J3
166 °/s (2.9 rad/s)
J4
260 °/s (4.54 rad/s)
J5
245 °/s (4.28 rad/s)
J6
322 °/s (5.62 rad/s)
Motion Range
J1
+150° - 150°
J2
+75° - 150°
J3
+158° - 120°
J4
+350° - 350°
J5
+119° - 119°
J6
+350° - 350°
