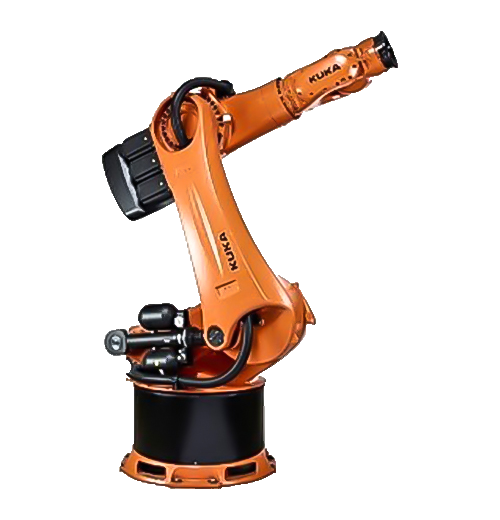

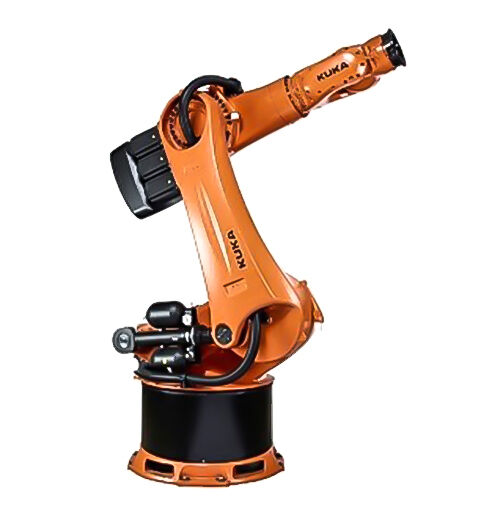

KUKA KR 600 FORTEC
Contact us:
Reach
2826 mm
Axes
6
Reach
2826 mm
Axes
6
Details

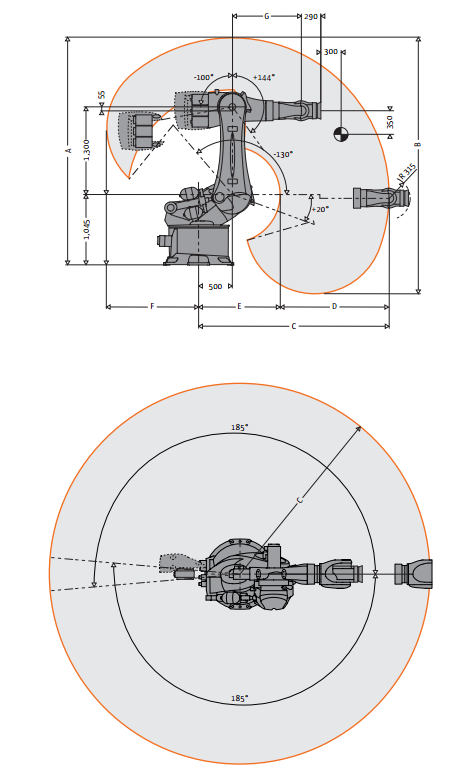

The new generation of robots, to include the KUKA KR 600 FORTEC, brings an improved, streamlined design to the production floor and an overall improved performance. The hole patterns on the mounting flange on the wrist and for fastening the robot to the floor, for the KR 600 FORTEC, and its predecessor models, are all the same. This is important as they were designed to provide an easy addition for existing cell layouts. This heavy duty robot offers a huge working envelope (2826 mm), a considerable length of the reference load center distances, and is also available as a foundry version.
Specs
Reach
2826 mm
Axes
6
Repeatability
0.08 mm
Mass
2650 kg
Structure
Articulated
Mounting
Floor
Motion Speed
J1
80 °/s (1.4 rad/s)
J2
75 °/s (1.31 rad/s)
J3
70 °/s (1.22 rad/s)
J4
70 °/s (1.22 rad/s)
J5
70 °/s (1.22 rad/s)
J6
110 °/s (1.92 rad/s)
Motion Range
J1
±185°
J2
+20° - 130°
J3
+144° - 100°
J4
±350°
J5
±120°
J6
±350°
